产品应用

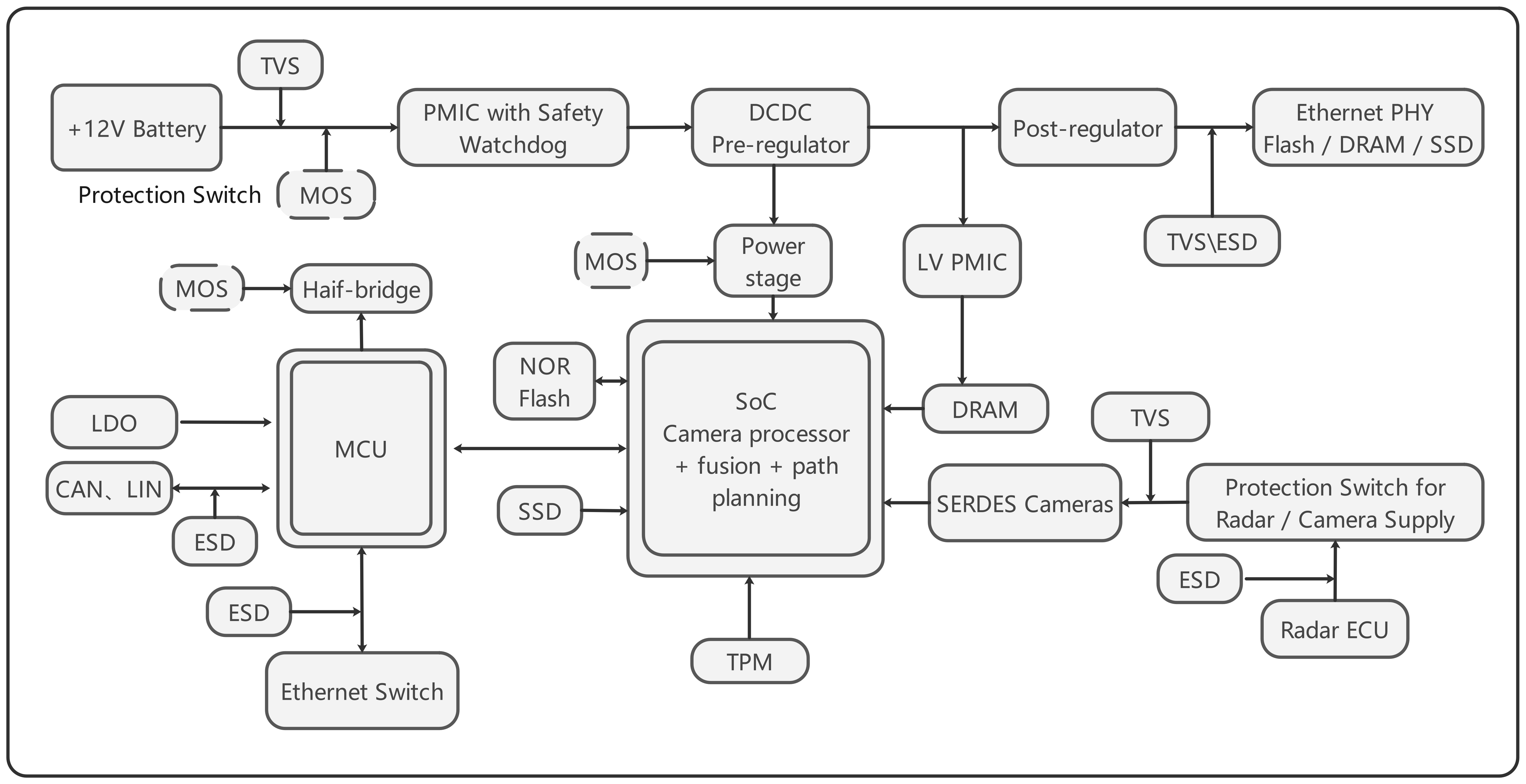

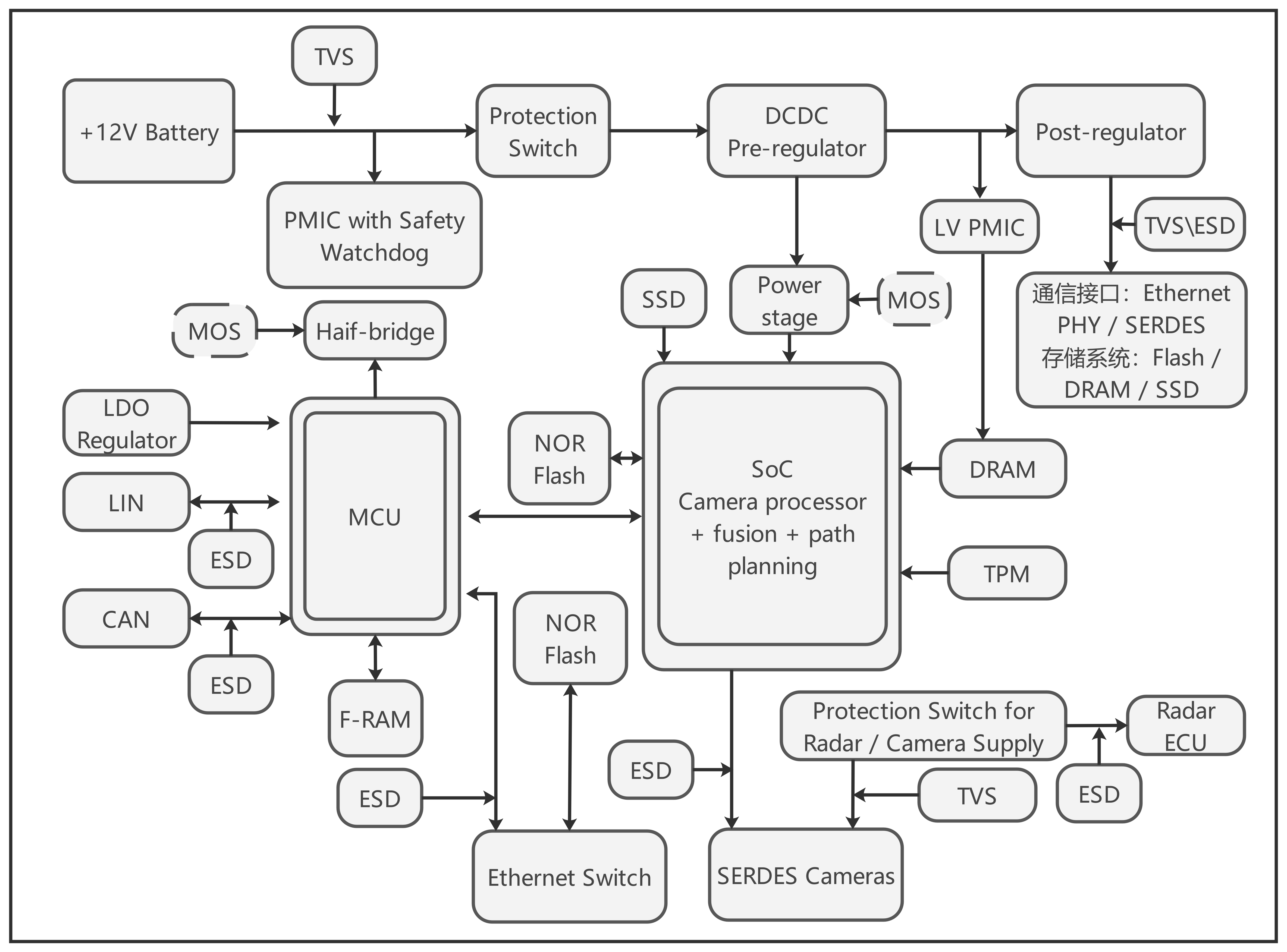

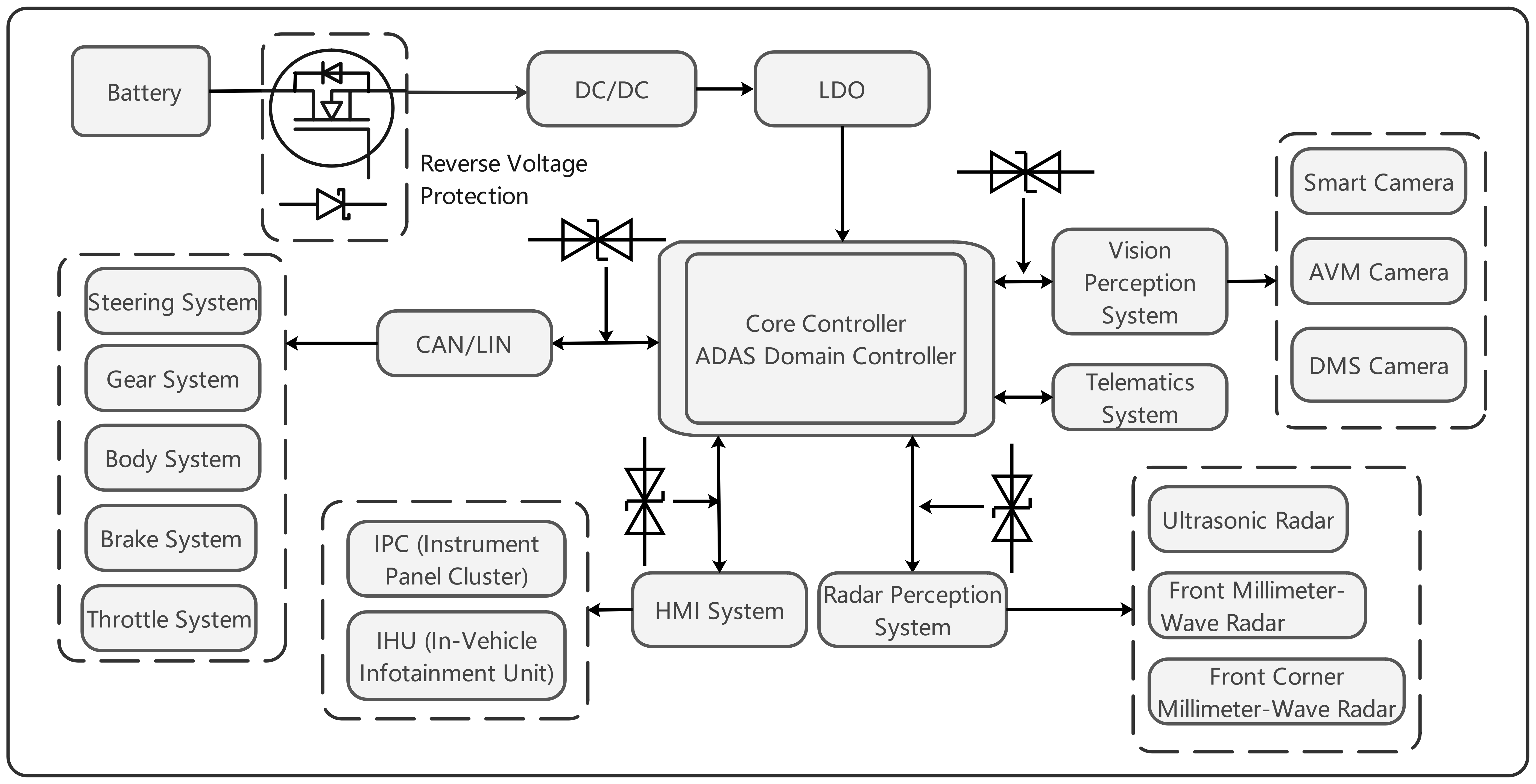

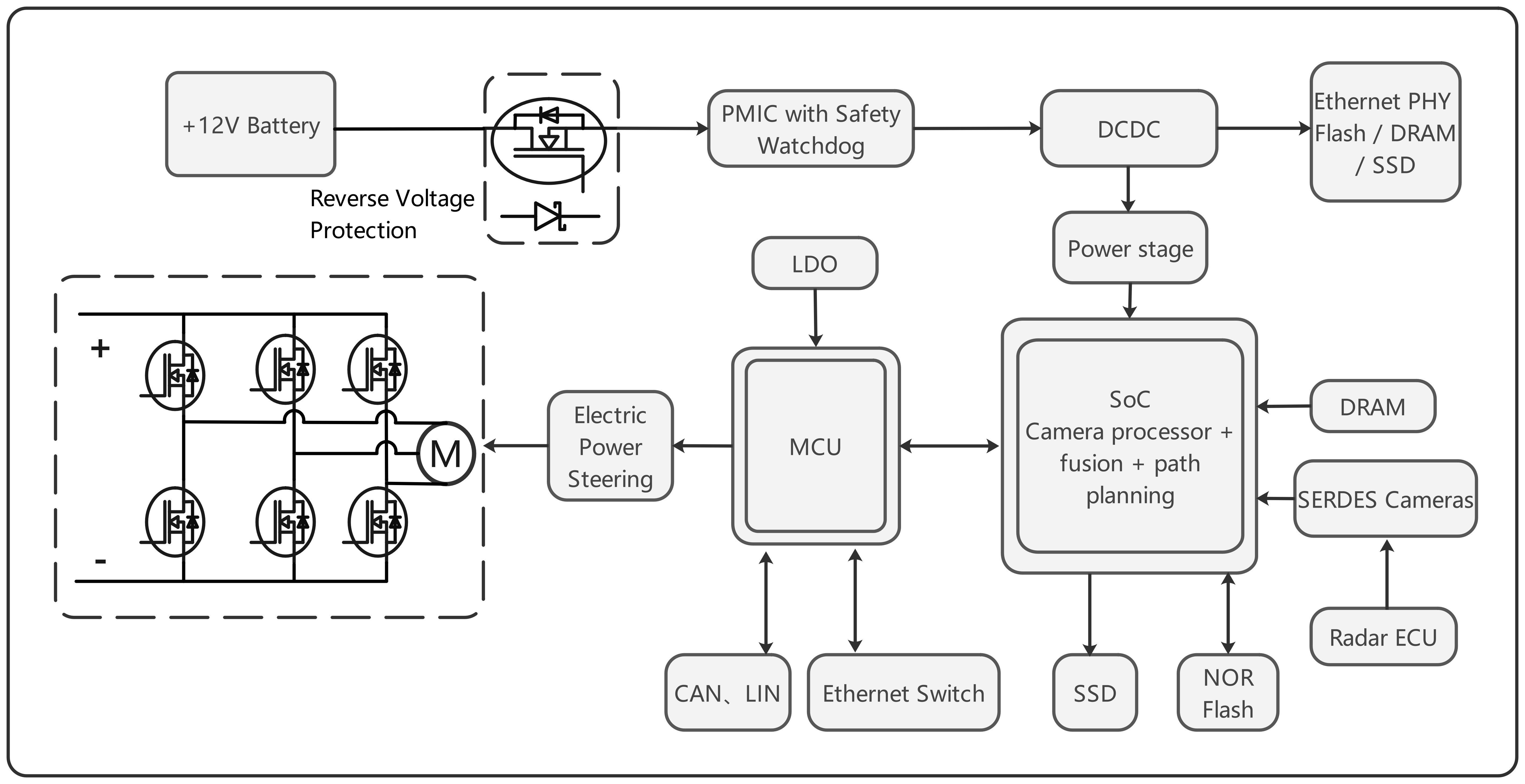

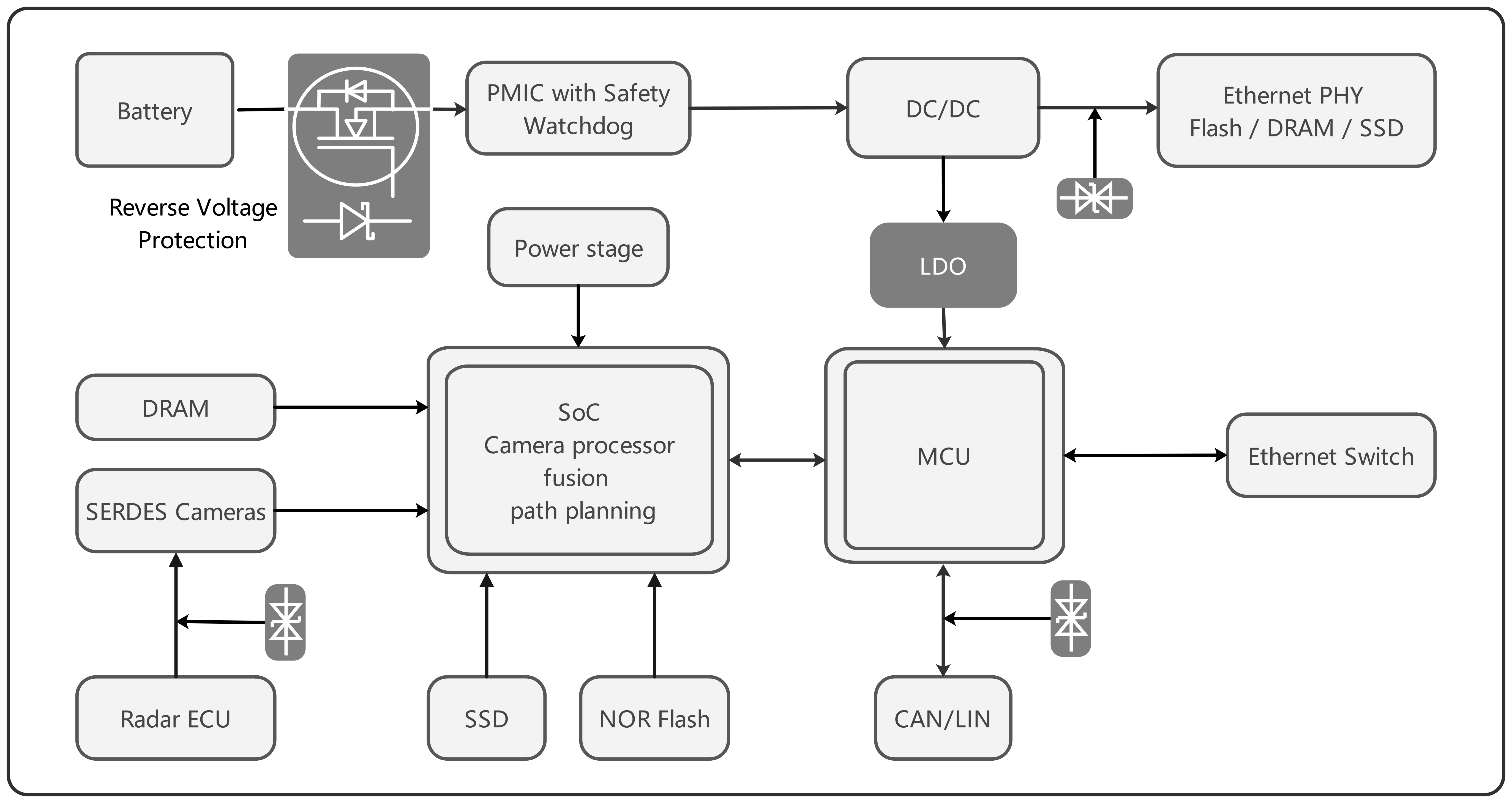

ADAS
Function | Part Number | Polarity | VDS(V) | RDS(on)@10V (mΩ) | Package |
MOSFET | WTM303N070L-CH | N | 30 | 7 | DFN3030 |
MKB02P410UK-CH | P | 20 | 410 | SOT-323 | |
WDM504N013S-CH | N | 40 | 1.4 | DFN5060 | |
Function | Part Number | Polarity | VCEO(V) | IC(A) | Package |
BJT | MMBTRC102YSS-CH | NPN | 50 | 0.1 | SOT-23 |
BC807-16-CH | PNP | 50 | 0.5 | SOT-23 | |
Function | Part Number | Polarity | VRM(V) | IF(A) | Package |
Switching Diodes | BAS21W-CH | Uni | 250 | 0.2 | SOT-323 |
BAV99-CH | Uni | 100 | 0.125 | SOT-23 | |
Function | Part Number | Polarity | VRRM(V) | IF(A) | Package |
Schottk Diodes | SD103BWS-CH | - | 30 | 0.35 | SOD-323 |
- | 40 | 0.5 | SOD-123 | ||
SDB14WS-CH | - | 40 | 1 | SOD-323 | |
Function | Part Number | Polarity | VRWM(V) | IPP(A) | Package |
ESD | E24SBKA2B-CH | Bi | 24 | 3 | SOT-23 |
E24SBKA2BE-CH | Bi | 24 | 4 | SOT-23 | |
Function | Part Number | Polarity | Vzonm(V) | IZT(mA) | Package |
Zener | MM1Z3V3-CH | Uni | 3.3 | 5 | SOD-123 |
