产品应用

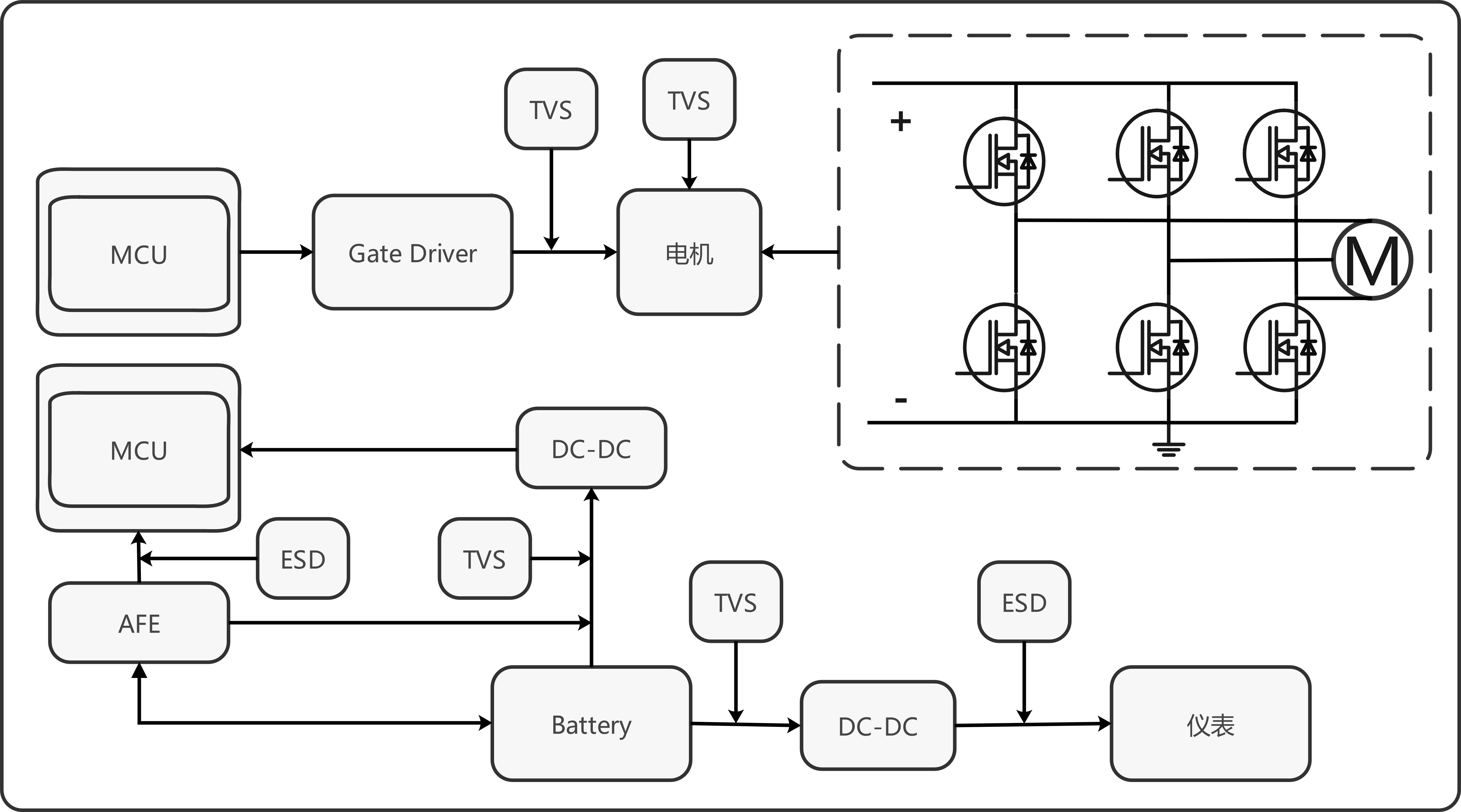

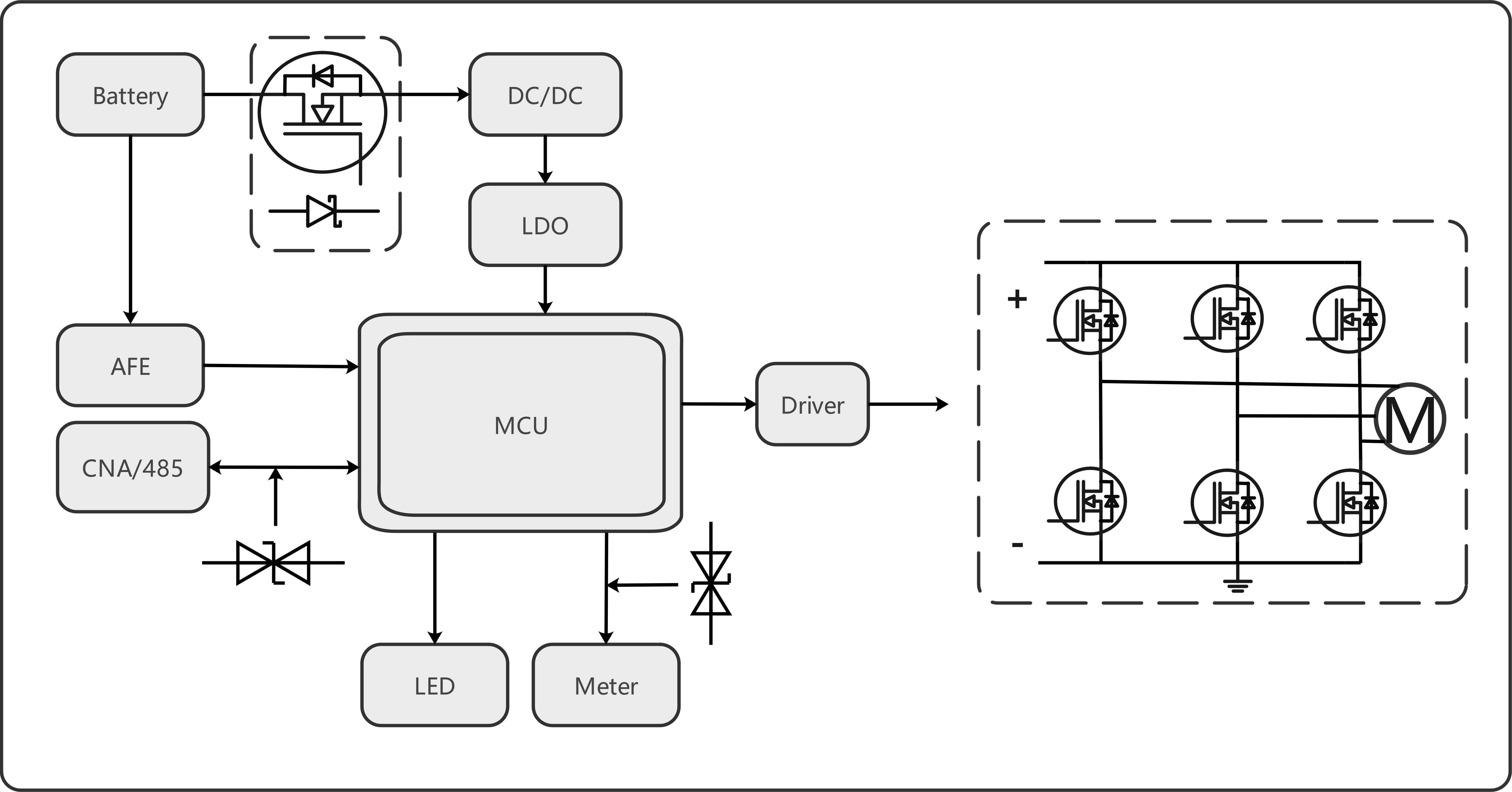

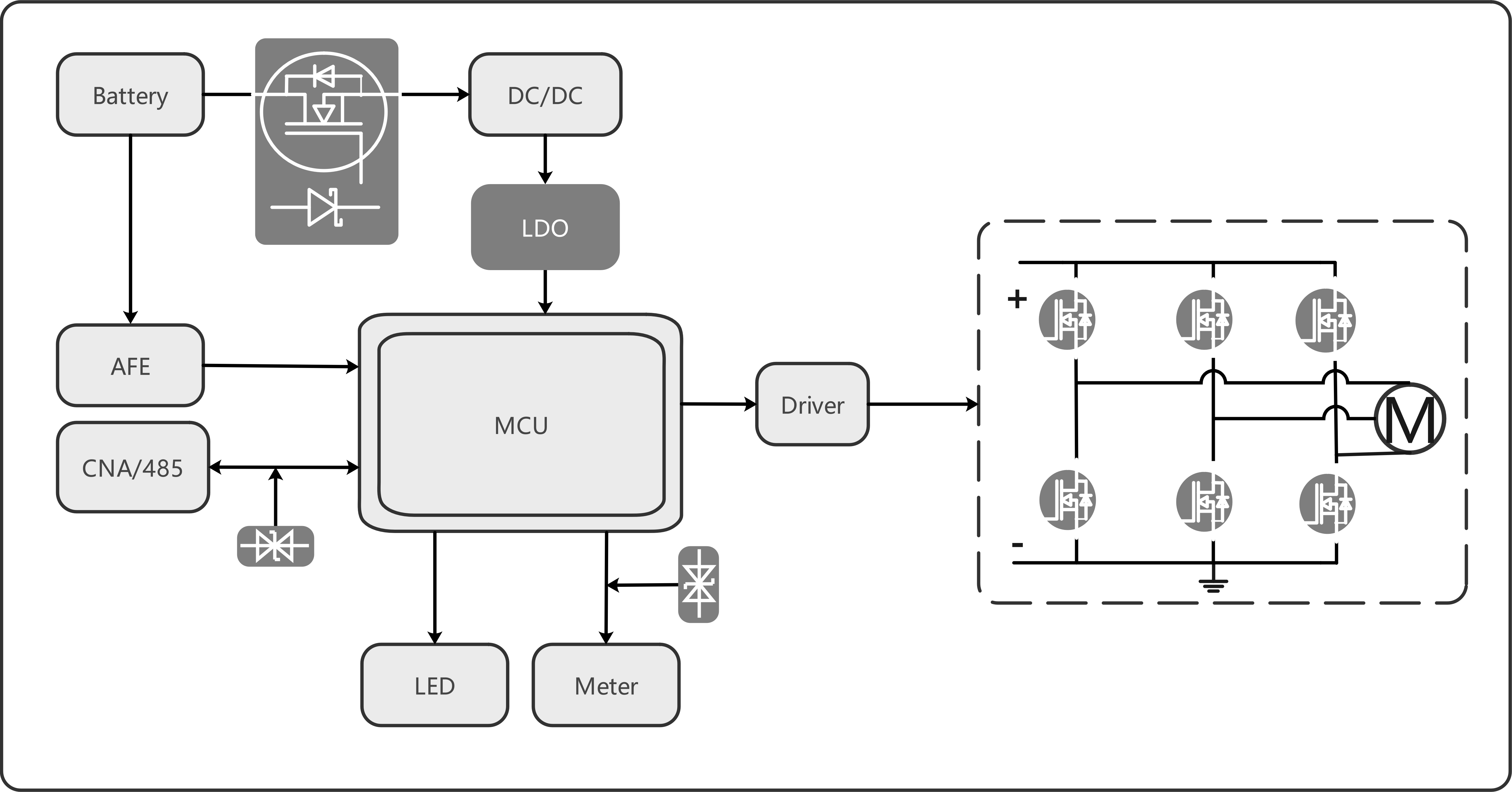

电动两轮车
Function | Part Number | Polarity | VDS(V) | RDS(on)(mΩ) | Package |
MOSFET | SDM5018N04LA1 | N | 40 | 1.8 | DFN5060 |
SDMR014N10HA1 | N | 100 | 1.4 | TOLL | |
SDMR024N12HA1 | N | 120 | 2.4 | TOLL | |
SD5F015N06LAB | N | 60 | 1.5 | DFN5060F | |
SDM5029N06HA1 | N | 60 | 2.9 | DFN5060 | |
SDM5029N10HA2 | N | 100 | 2.9 | DFN5060 | |
SDM5042N10HA1 | N | 100 | 4.2 | DFN5060 | |
SDV064N15HA1 | N | 150 | 6.4 | TO-263 | |
SDV094N20HA1 | N | 200 | 9.4 | TO-263 | |
2N7002AK | N | 60 | 2200 | SOT-23 | |
Function | Part Number | Polarity | VCEO(V) | IC(A) | Package |
BJT | MMBT9014 | NPN | 45 | 0.1 | SOT-23 |
MMBT8050S(1.5A) | NPN | 25 | 1.5 | SOT-23 | |
Function | Part Number | Polarity | VRRM(V) | IF(A) | Package |
FRD | FR107W | - | 1060 | 1 | SOD-123FL |
Function | Part Number | Polarity | VRM(V) | IF(A) | Package |
Switching | 1N4148SW | - | 100 | 0.2 | SOD-123 |
Function | Part Number | Polarity | Vzonm(V) | IZT(mA) | Package |
Zener | MM1Z3V3 | Uni | 3.3 | 5 | SOD-123 |
Function | Part Number | Polarity | Vwm(V) | Pppm(W) | Package |
TVS | SMBJ24CA | Bi | 24 | 600 | SMB |
SMBJ30CA | Bi | 30 | 600 | SMB | |
SMBJ45CA | Bi | 45 | 600 | SMB | |
Function | Part Number | Polarity | VRWM(V) | Cj(PF) | Package |
ESD | E5V0MBWB1AF | Bi | 5 | 110 | SOD-323BL |
E1524SBWB1AB | Bi | 24 | 40 | SOD-323BL |
