产品应用

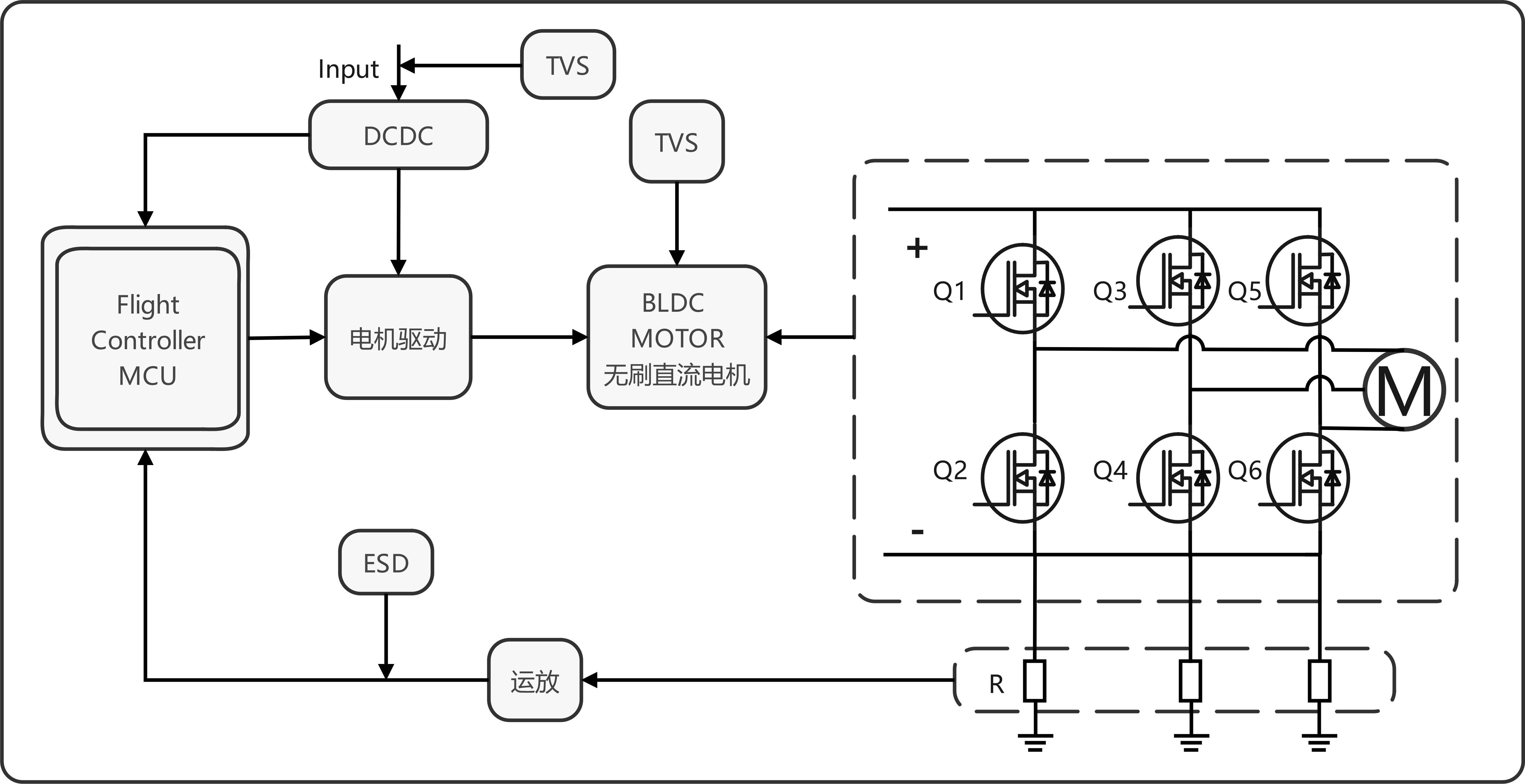

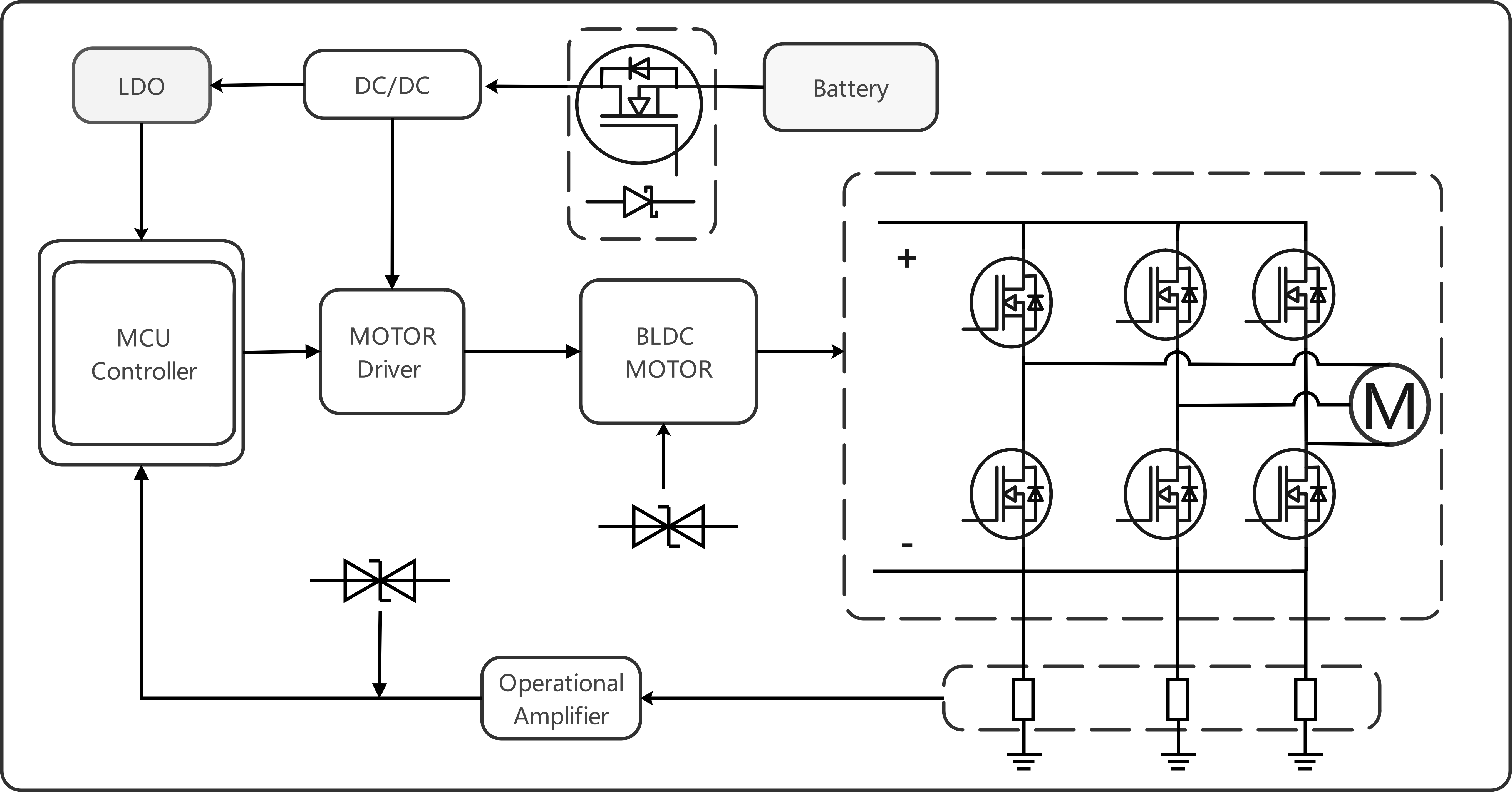

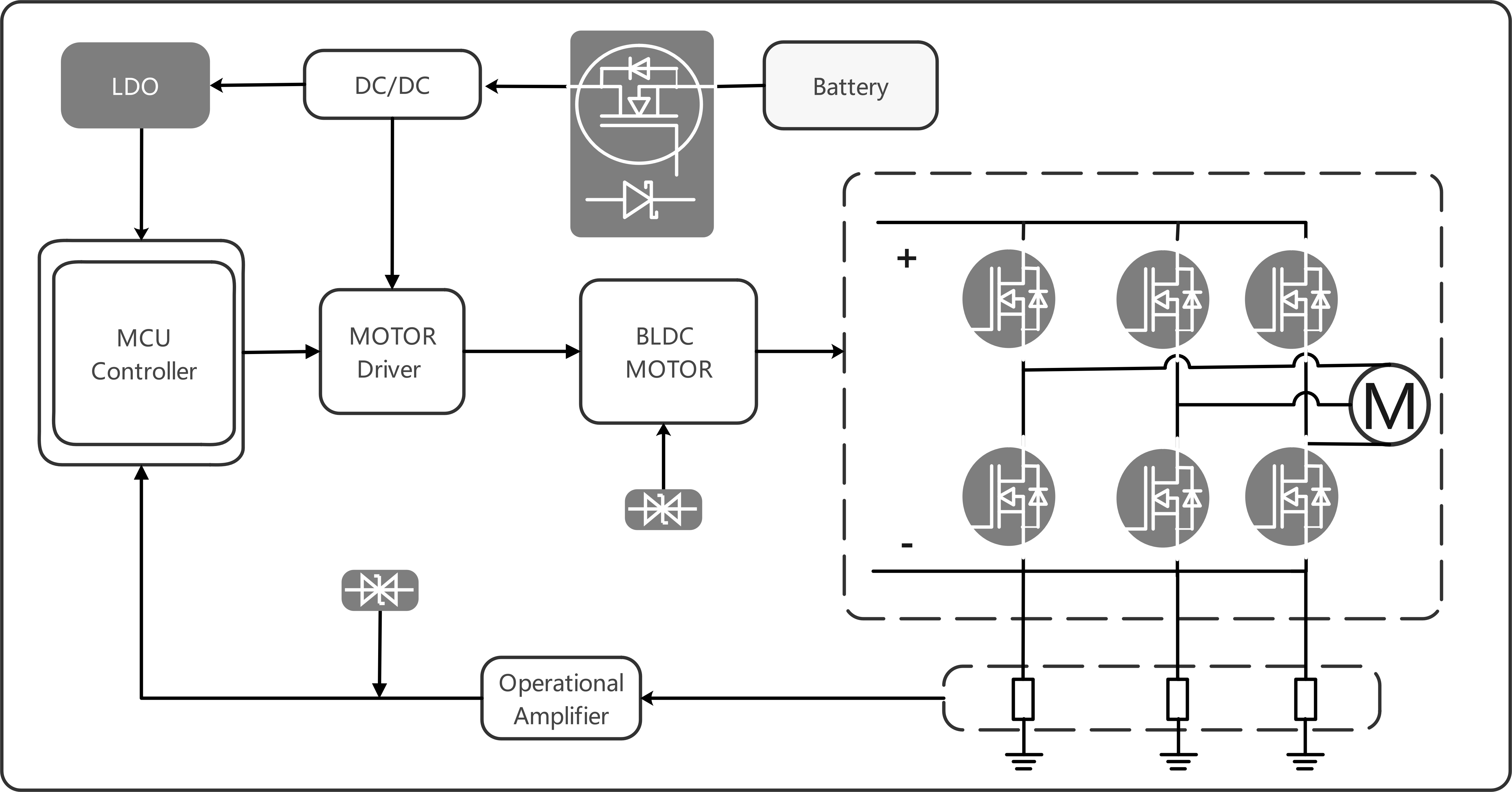

无人机
Function | Part Number | Polarity | VDS(V) | RDS(on)(mΩ) | Package |
MOSFET | SD5F010N03LAB | N | 30 | 1 | DFN5060F |
SDM5017N03LA1 | N | 30 | 1.7 | DFN5060 | |
SDM5018N04HA1 | N | 40 | 1.8 | DFN5060 | |
SDMR024N12HA1 | N | 120 | 2.4 | TOLL | |
SD5F012N03LA1 | N | 30 | 1.2 | DFN5060F | |
SDM3044N03LA1 | N | 30 | 4.4 | DFN3030 | |
SDM3186N10LA1 | N | 100 | 18.6 | DFN3030 | |
SDM3280N10LA1 | N | 100 | 28 | DFN3030 | |
Function | Part Number | Polarity | VCEO(V) | IC(A) | Package |
BJT | MMBT9014 | NPN | 45 | 0.1 | SOT-23 |
MMBT8050S(1.5A) | NPN | 25 | 1.5 | SOT-23 | |
Function | Part Number | Polarity | Vzonm(V) | IZT(mA) | Package |
Zener | MM1Z12S | Uni | 12 | 5 | SOD-123 |
Function | Part Number | Polarity | VRM(V) | IF(A) | Package |
Switching | 1N4148SW | - | 100 | 0.2 | SOD-123 |
Function | Part Number | Polarity | VRRM(V) | IF(A) | Package |
FRD | US1M | - | 1000 | 1 | SMA |
FR107W | - | 1000 | 1 | SOD-123FL | |
Function | Part Number | Polarity | VRRM(V) | IF(A) | Package |
Schottky | SS520B | - | 200 | 5 | SMB |
Function | Part Number | Polarity | VRWM(V) | Cj(PF) | Package |
ESD | E5V0VUKA2CB | Uni | 5 | 1 | SOT-23 |
Function | Part Number | Polarity | Vwm(V) | Pppm(W) | Package |
TVS | SMBJ6.5CA | Bi | 6.5 | 600 | SMB |
SMBJ36CA | Bi | 36 | 600 | SMB | |
Function | Part Number | Polarity | VI(V) | IL(A) | Package |
LDO | SR1117 | - | 18 | 1 | SOT-23 |
