产品应用

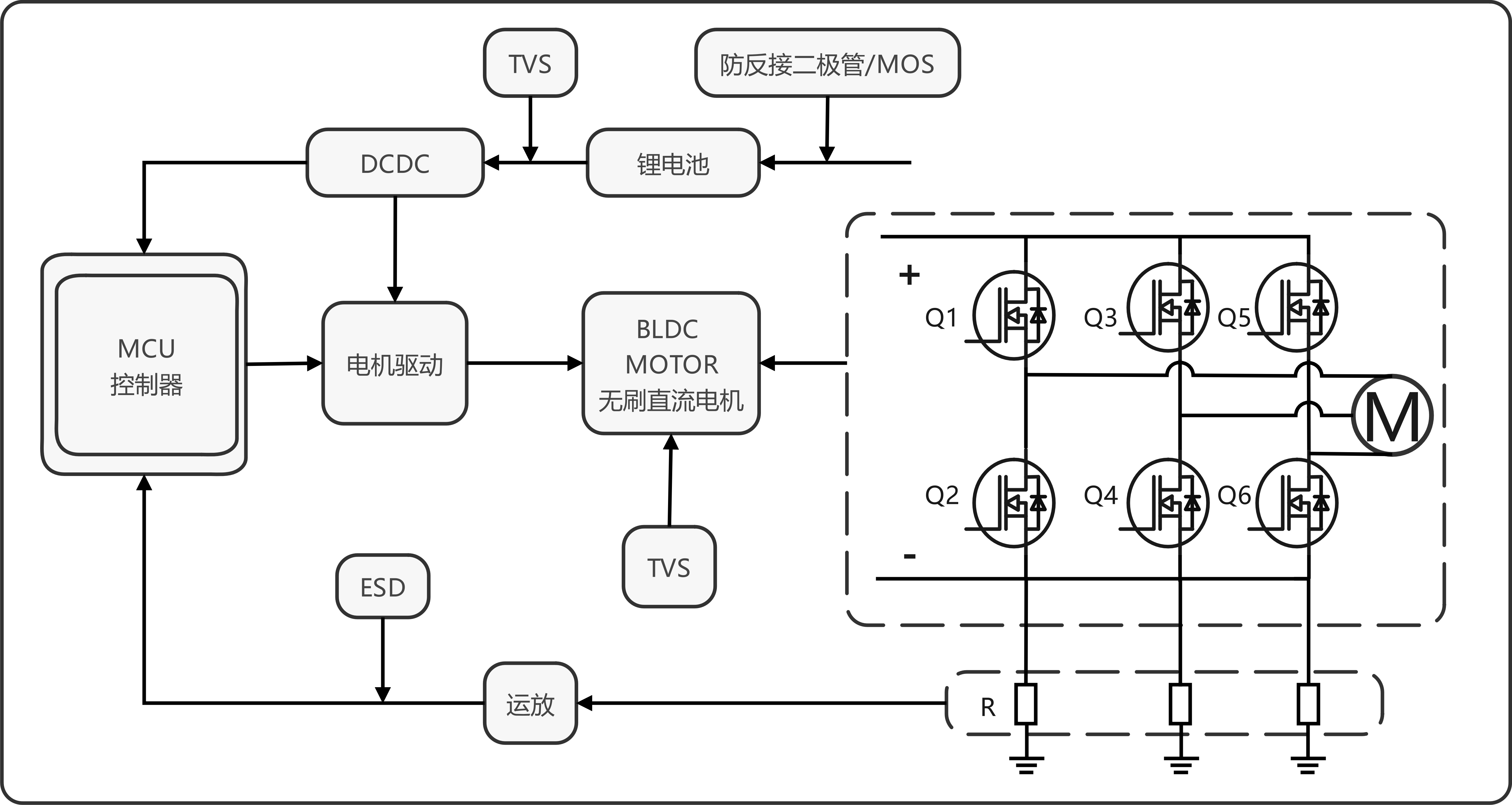

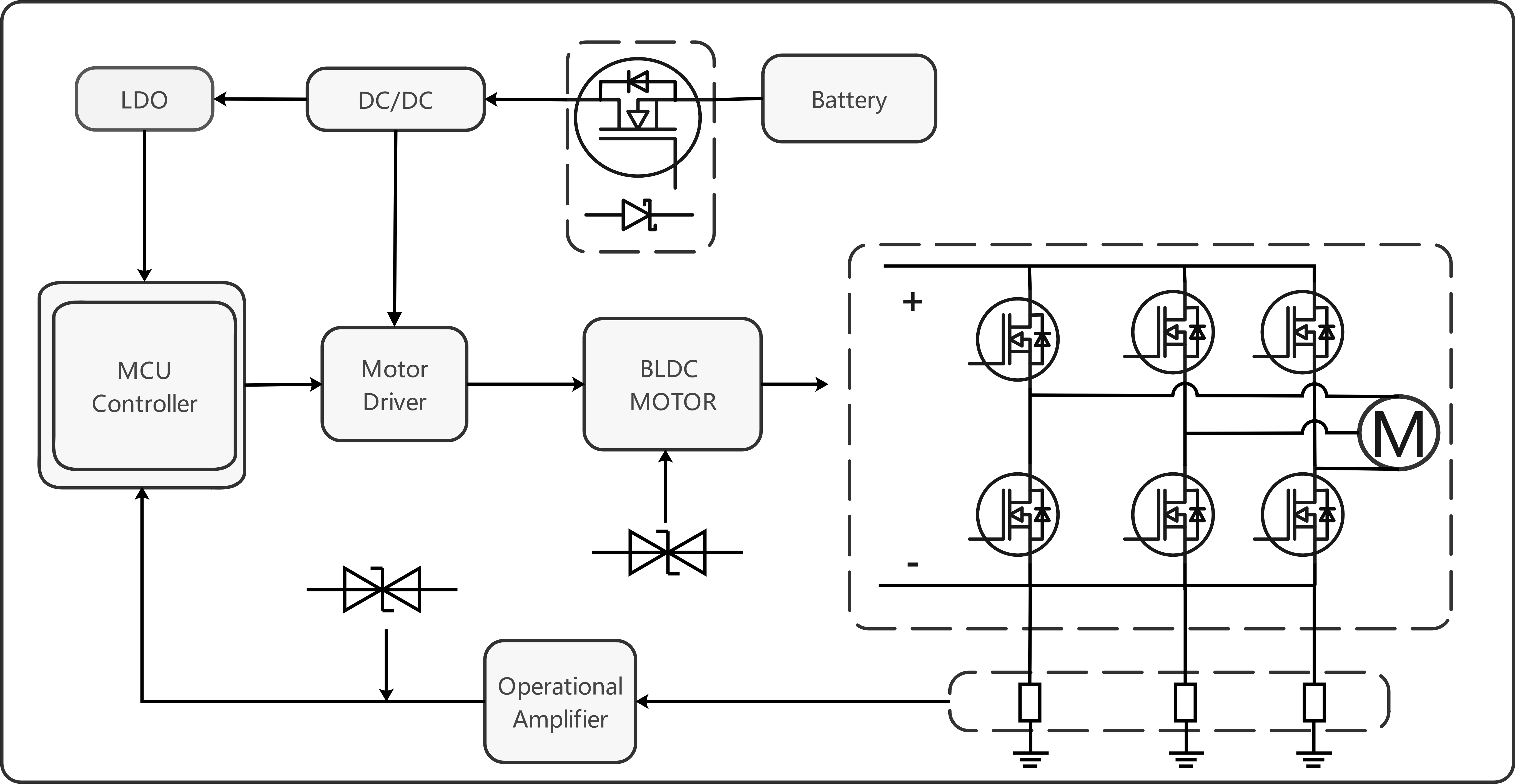

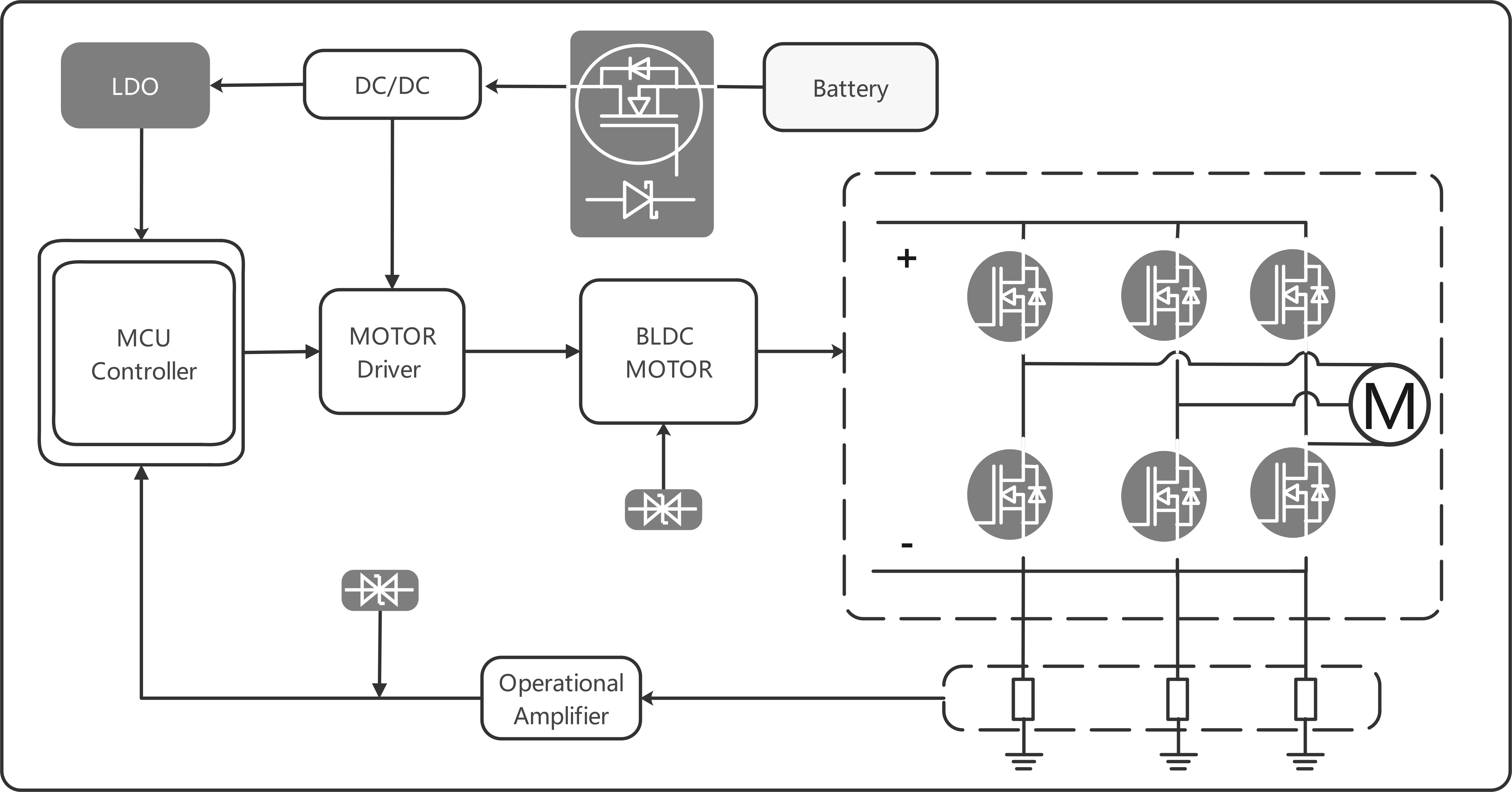

电动工具
Function | Part Number | Polarity | VDS(V) | RDS(on)(mΩ) | Package |
MOSFET | SD5F010N03LAB | N | 30 | 1 | DFN5060F |
SD5F013N03LAB | N | 30 | 1.3 | DFN5060F | |
SDM5033N04HA1 | N | 40 | 3.3 | DFN5060 | |
SD5F035N10HAA | N | 100 | 3.5 | DFN5060F | |
SDM5041N06LA1 | N | 60 | 4.1 | DFN5060 | |
SDM5045N04LA1 | N | 40 | 4.5 | DFN5060 | |
SDM5018N04HA1 | N | 40 | 1.8 | DFN5060 | |
SDM3019N03LA1 | N | 30 | 1.9 | DFN3030 | |
Function | Part Number | Polarity | VCEO(V) | IC(A) | Package |
BJT | MMBT8050S(1.5A) | NPN | 25 | 1.5 | SOT-23 |
MMBT8550S(1.5A) | PNP | 25 | 1.5 | SOT-23 | |
Function | Part Number | Polarity | VRM(V) | IF(A) | Package |
Schottky | SS14 | - | 40 | 1 | SMA |
SS54B | - | 40 | 5 | SMB | |
Function | Part Number | Polarity | VRM(V) | IF(A) | Package |
Switching | 1N4148SW | - | 100 | 0.2 | SOD-123 |
Function | Part Number | Polarity | Vzonm(V) | IZT(mA) | Package |
Zener | MM1Z3V3 | Uni | 3.3 | 5 | SOD-123 |
Function | Part Number | Polarity | VRRM(V) | IF(A) | Package |
FRD | US1M | - | 1000 | 1 | SMA |
Function | Part Number | Polarity | Vwm(V) | Pppm(W) | Package |
TVS | SMBJ12CA | - | 12 | 600 | SMB |
SMBJ24CA | - | 24 | 600 | SMB | |
Function | Part Number | Polarity | VI(V) | IL-IO(A) | Package |
LDO | SR78L05EU | - | 38 | 0.1 | SOT-89 |
SR2502 Series | - | 50 | 0.2 | SOT-23 | |
Function | Part Number | Polarity | VKA(V) | IKA(A) | Package |
VREF | SR431FKA | - | 37 | 0.1 | SOT-23 |
