产品应用

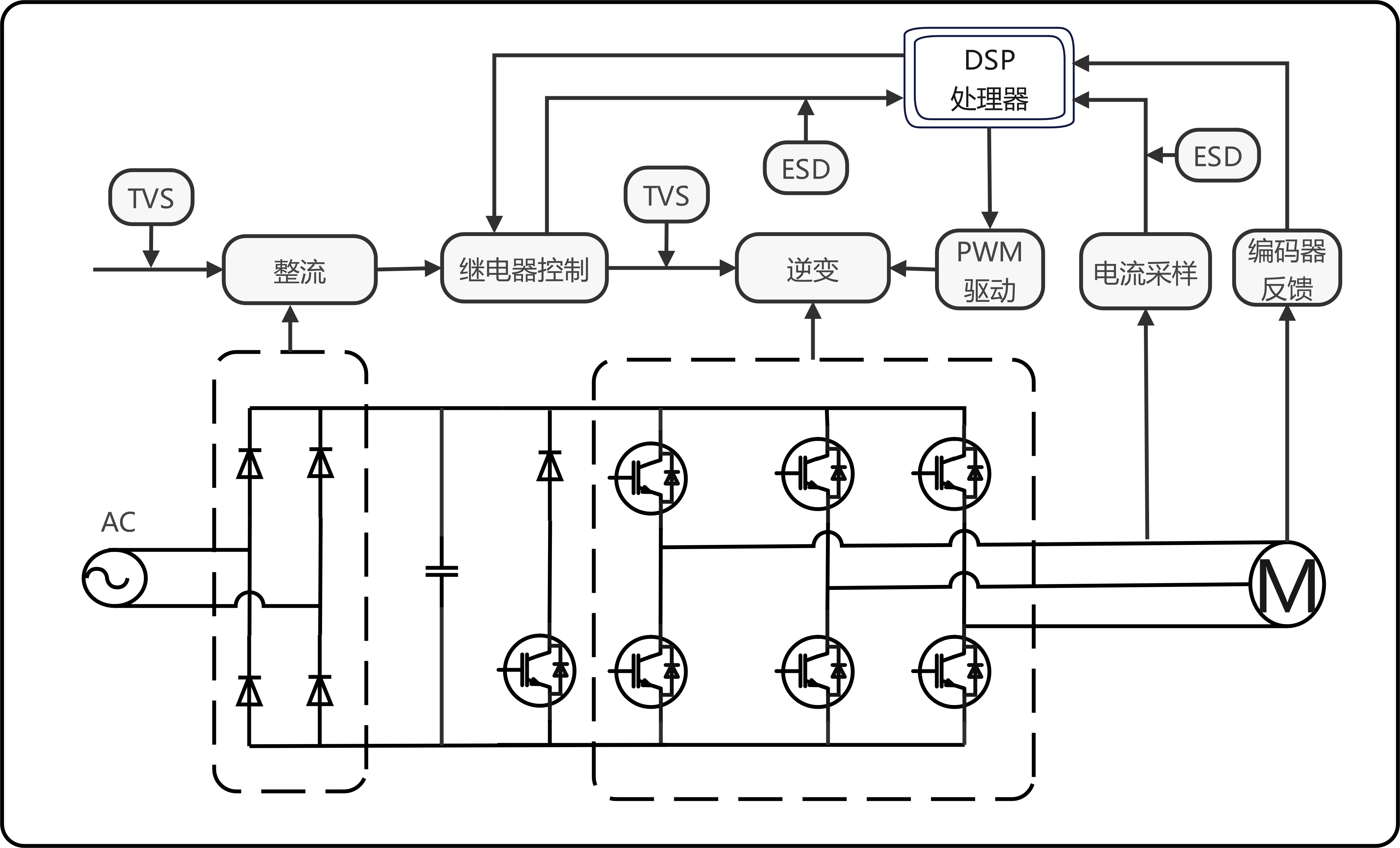

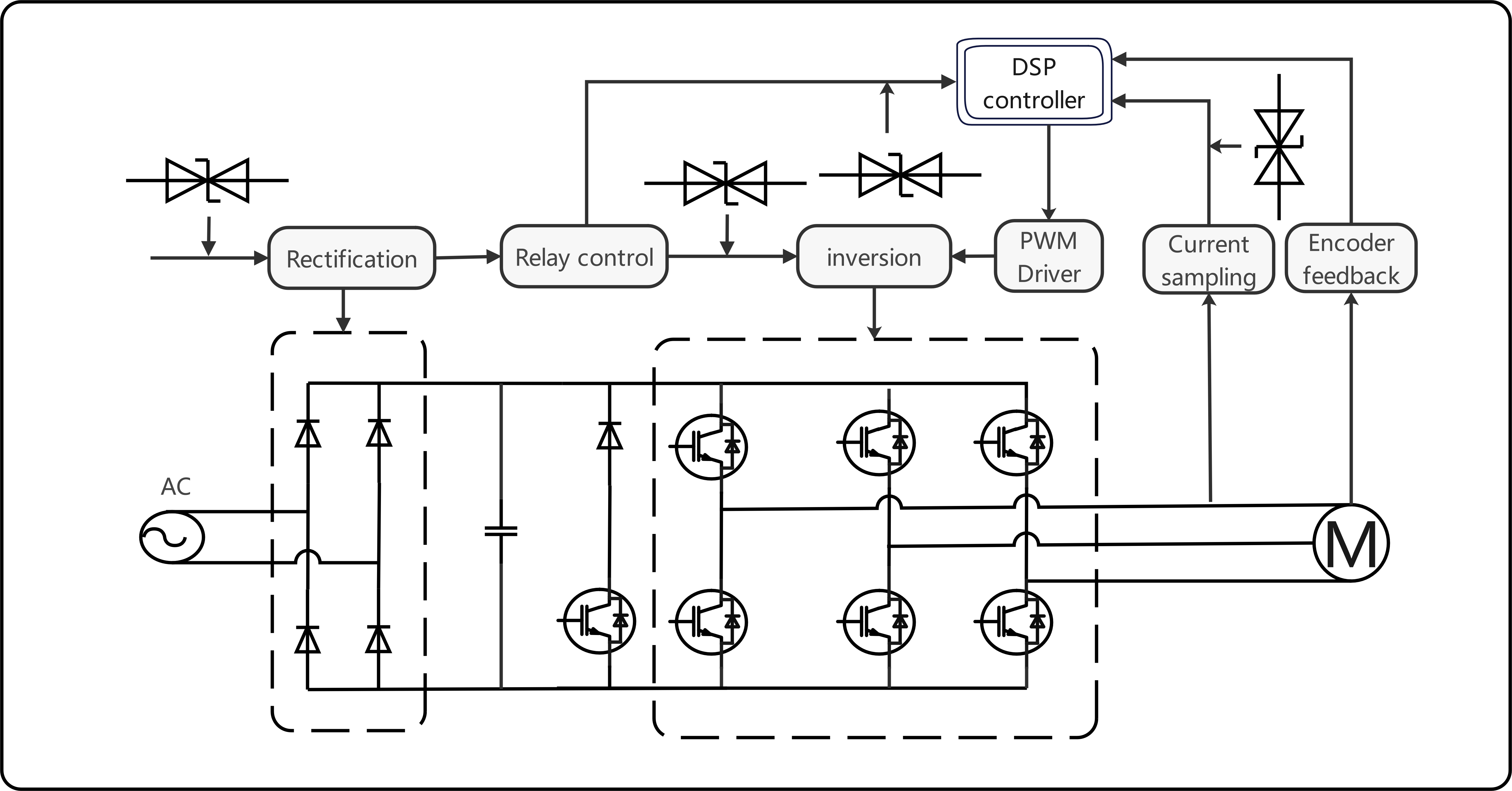

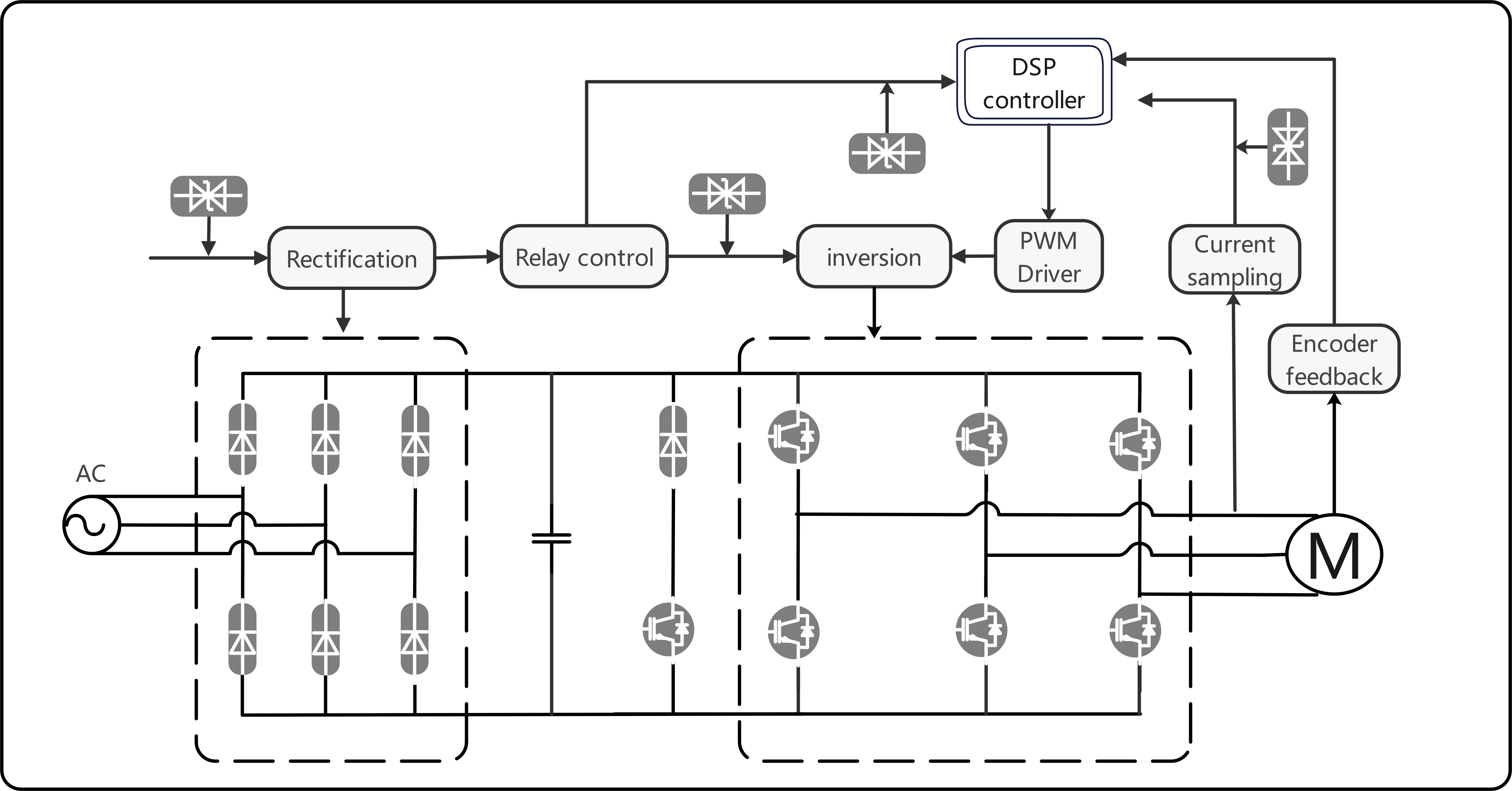

伺服电机
Function | Part Number | Polarity | VCES(V) | IC(A) | Package |
IGBT | SGPT40T65TA2D | - | 650 | 40 | TO-247-3 |
SGPT60T65TA2D | - | 650 | 60 | TO-247-3 | |
SGPT75T65SAAD | - | 650 | 75 | TO-247-3 | |
SGPT40T120TAAD | - | 1200 | 40 | TO-247-3 | |
SGPT75T120SAAD | - | 1200 | 75 | TO-247-3 | |
SGTT150T120SAAD | - | 1200 | 150 | TO-247P-3 | |
Function | Part Number | Polarity | VRRM(V) | IF(A) | Package |
FRD | SFF1008CT | - | 600 | 10 | TO-220F-3 |
WFAT30H60D | - | 600 | 30 | TO-220F-3 | |
Function | Part Number | Polarity | VRM(V) | IF(A) | Package |
Schottky | RB520S-40 | - | 40 | 0.2 | SOD-523 |
BAT54S | - | 30 | 0.3 | SOT-23 | |
SS320A | - | 200 | 3 | SMA | |
Function | Part Number | Polarity | VRM(V) | IF(A) | Package |
Switching | 1N4148SW | - | 100 | 0.2 | SOD-123 |
Function | Part Number | Polarity | Vzonm(V) | IZT(mA) | Package |
Zener | MM1Z5V1 | Uni | 5.1 | 5 | SOD-123 |
MM3Z5V1 | Uni | 5.1 | 5 | SOD-323 | |
Function | Part Number | Polarity | VRWM(V) | Cj(PF) | Package |
ESD | E1524SBWB1AC | Bi | 24 | 20 | SOD-323 |
Function | Part Number | Polarity | Vwm(V) | Pppm(W) | Package |
TVS | SMAJ12CA | Bi | 12 | 400 | SMA |
SMAJ18CA | Bi | 18 | 400 | SMA | |
SMBJ36CA | Bi | 36 | 600 | SMB | |
Function | Part Number | Polarity | VI(V) | IL-IO(A) | Package |
LDO | SR1117 | - | 18 | 1 | TO-252 |
