产品应用

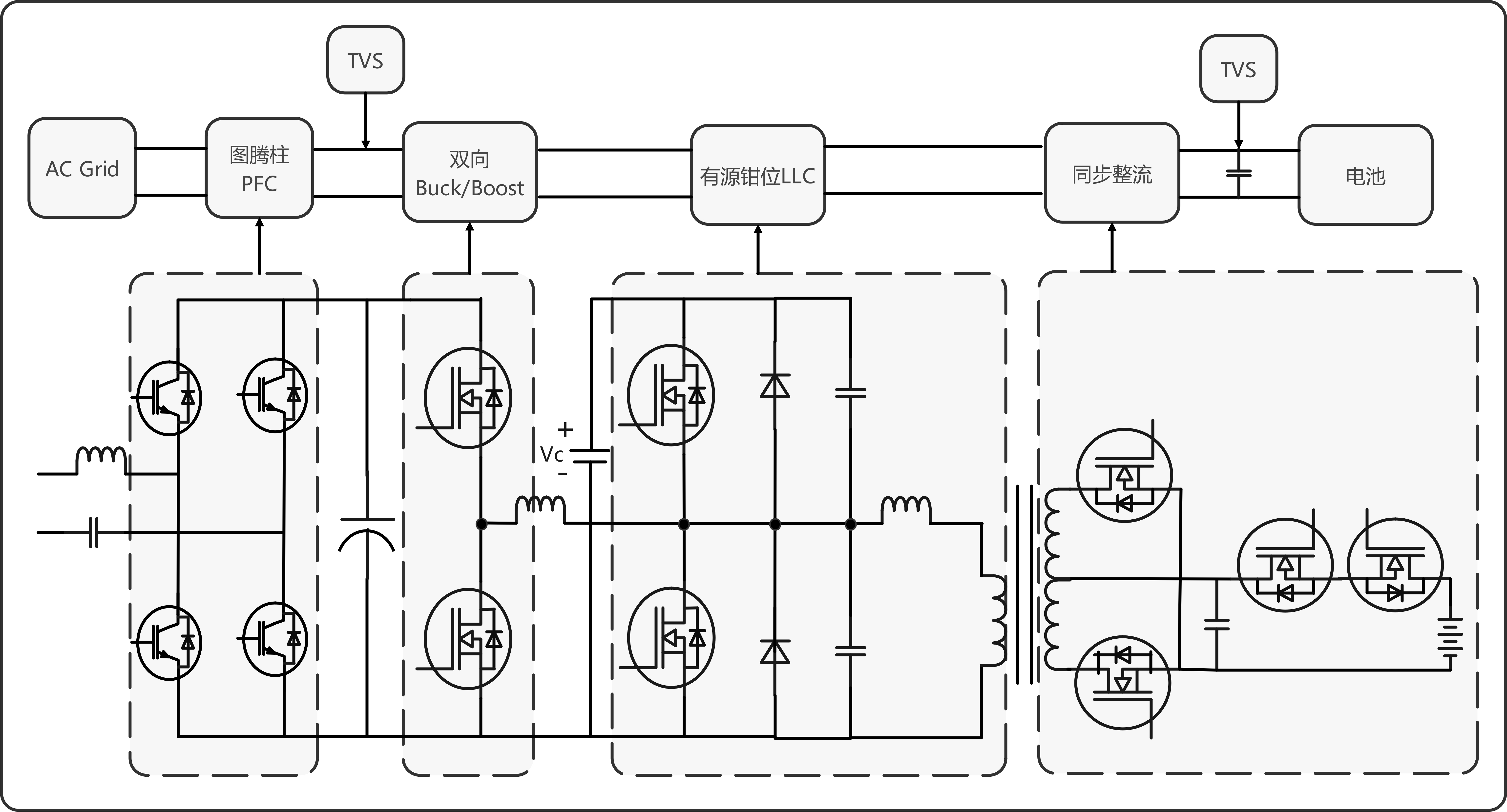

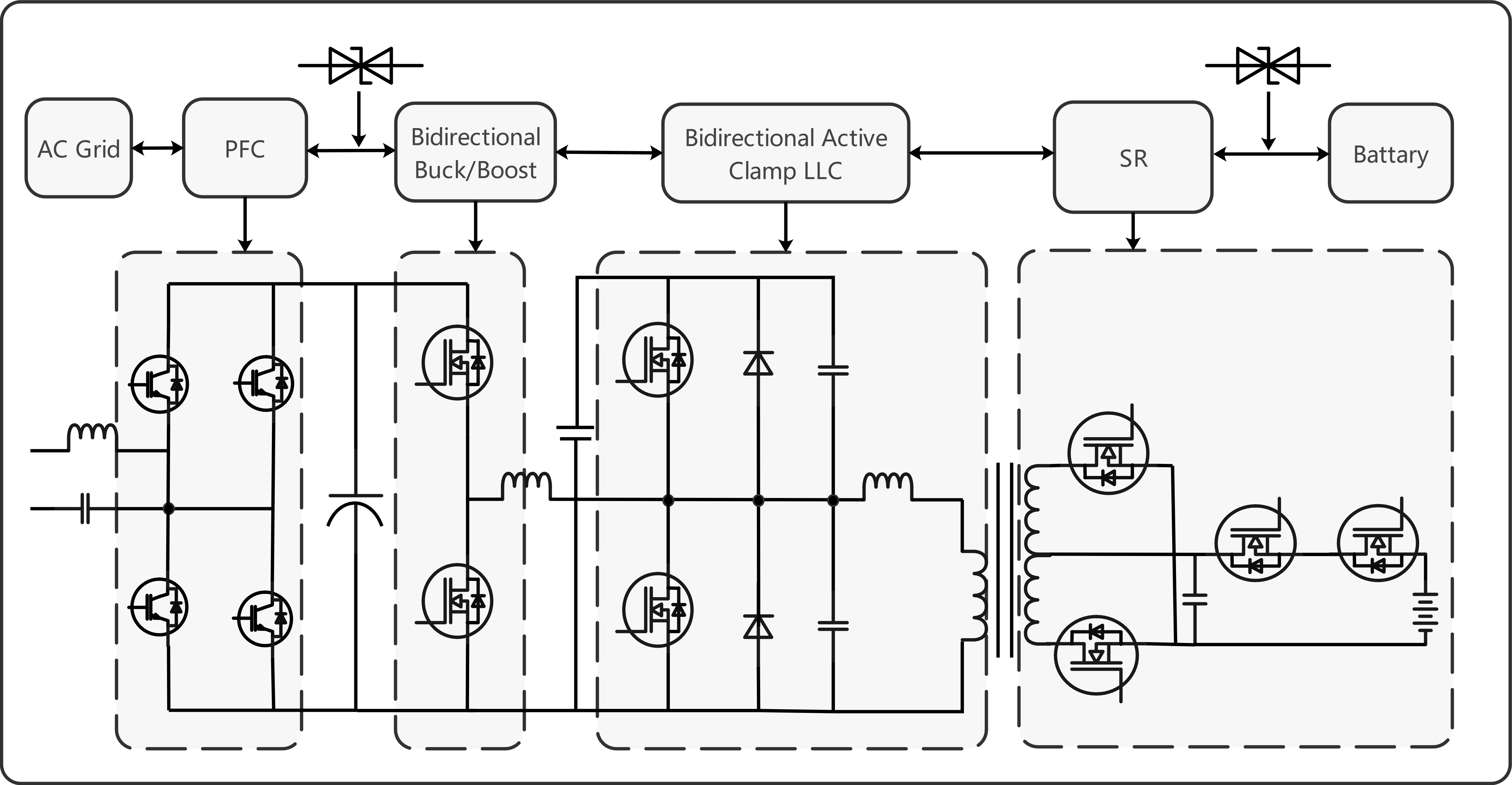

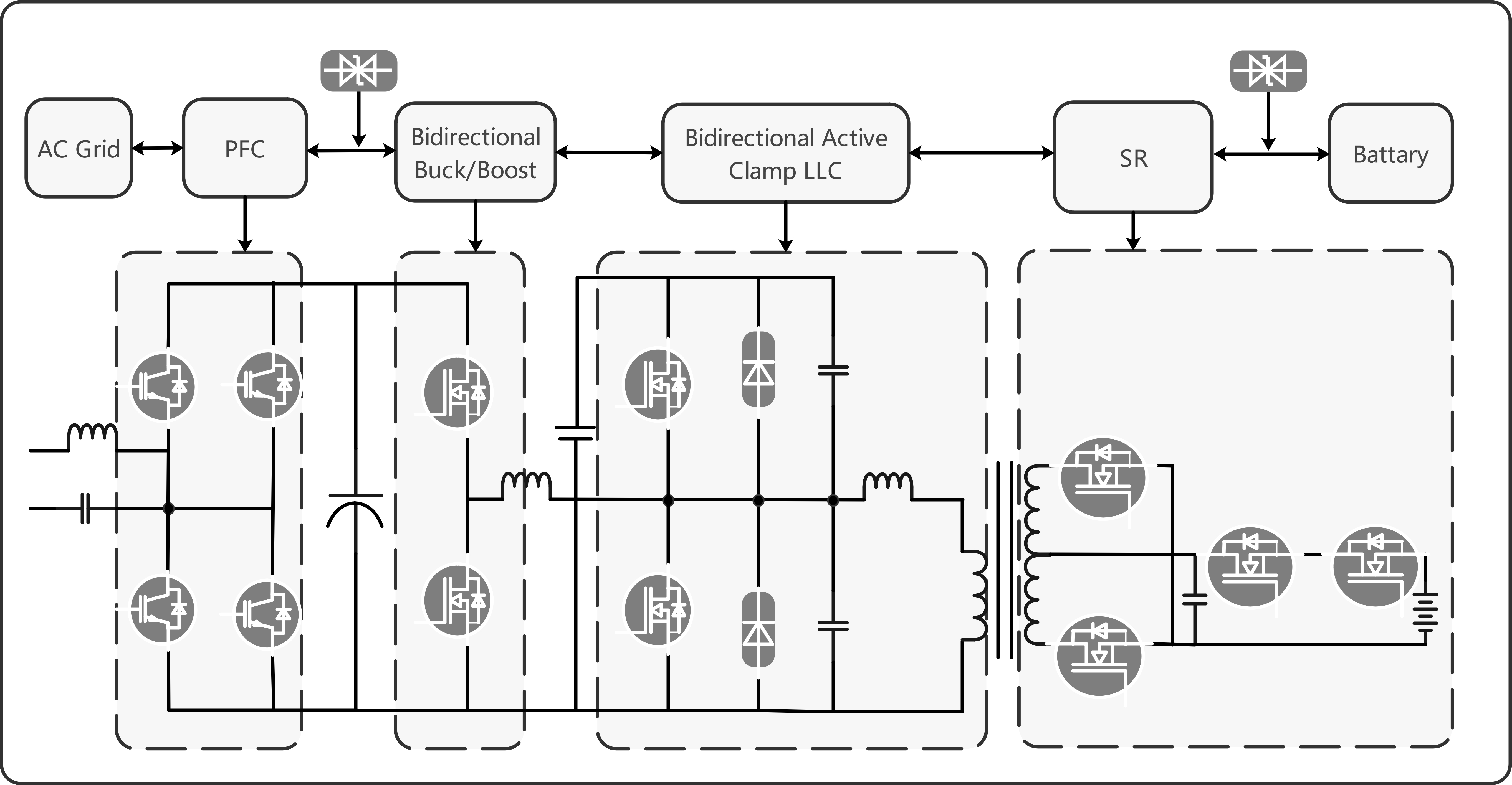

电池化成
Function | Part Number | Polarity | VDS(V) | RDS(on)(mΩ) | Package |
MOSFET | SDM5018N04HA1 | N | 40 | 1.8 | DFN5060 |
SDM5033N04HA1 | N | 40 | 3.3 | DFN5060 | |
SD5F015N06LAB | N | 60 | 1.5 | DFN5060F | |
SDM5029N06HA1 | N | 60 | 2.9 | DFN5060 | |
SDM3019N03LA1 | N | 30 | 1.9 | DFN3030 | |
Function | Part Number | Polarity | VCES(V) | IC(A) | Package |
IGBT | SGPT75T65SAAD | - | 650 | 75 | TO-247-3 |
SGPT75T120SAAD | - | 1200 | 75 | TO-247-3 | |
SGPT40T120TAAD | - | 1200 | 40 | TO-247-3 | |
SGVT25T120TAAD | - | 1200 | 25 | TO-263T | |
Function | Part Number | Polarity | VRM(V) | IF(A) | Package |
Schottky | BAS40-04 | - | 40 | 0.2 | SOT-23 |
SS220B | - | 200 | 2 | SMB | |
Function | Part Number | Polarity | VRRM(V) | IF(A) | Package |
FRD | US1M | - | 1000 | 1 | SMA |
FR107W | - | 1000 | 1 | SOD-123FL | |
Function | Part Number | Polarity | Vzonm(V) | IZT(mA) | Package |
Zener | MM1Z12 | Uni | 12 | 5 | SOD-123 |
MM3Z24 | Uni | 24 | 5 | SOD-323 | |
Function | Part Number | Polarity | Vwm(V) | Pppm(W) | Package |
TVS | SMBJ18CA | Bi | 18 | 600 | SMB |
SMBJ36CA | Bi | 36 | 600 | SMB | |
SMBJ100CA | Bi | 100 | 600 | SMB | |
SMBJ150CA | Bi | 150 | 600 | SMB |
