产品应用

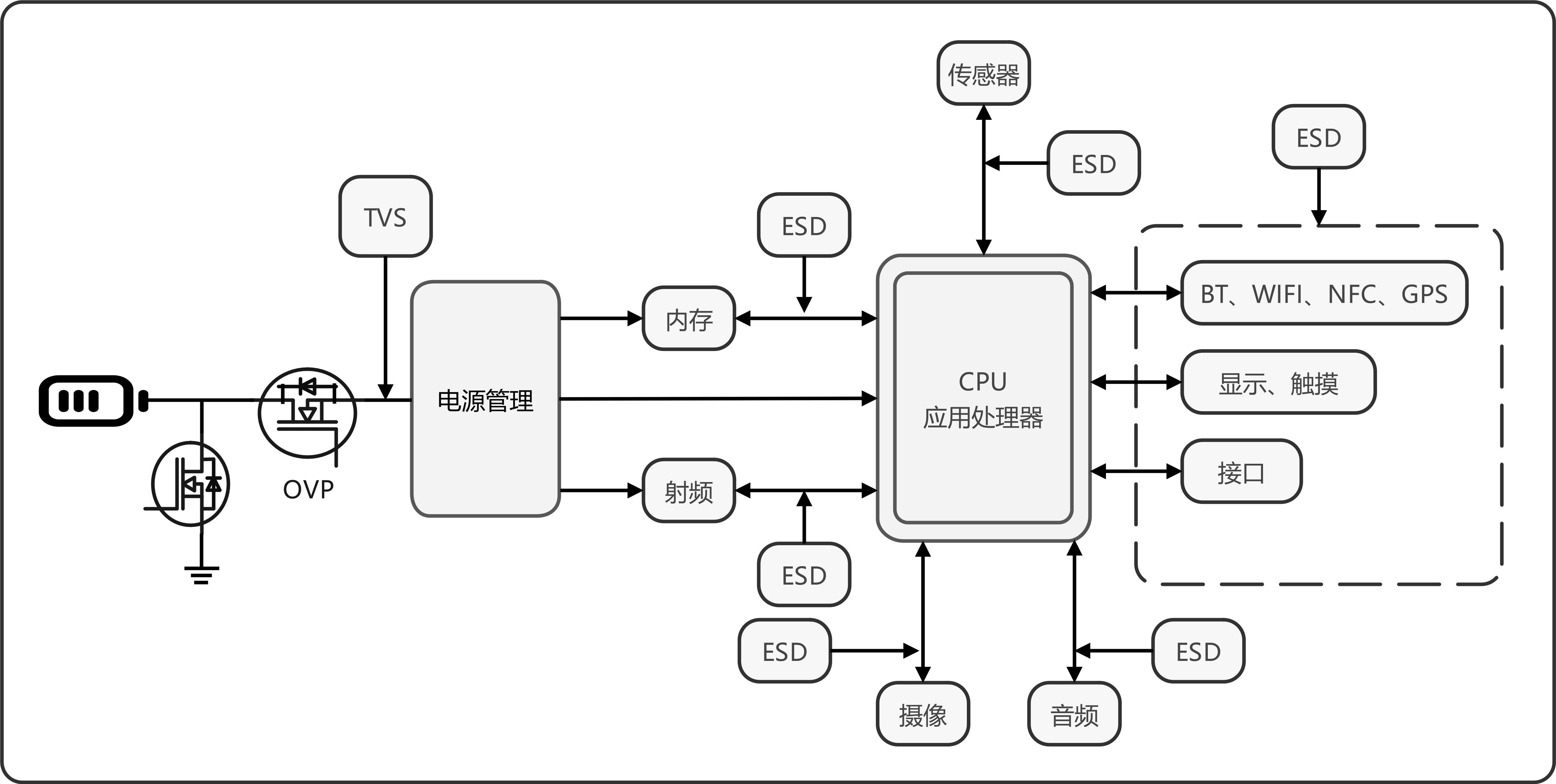

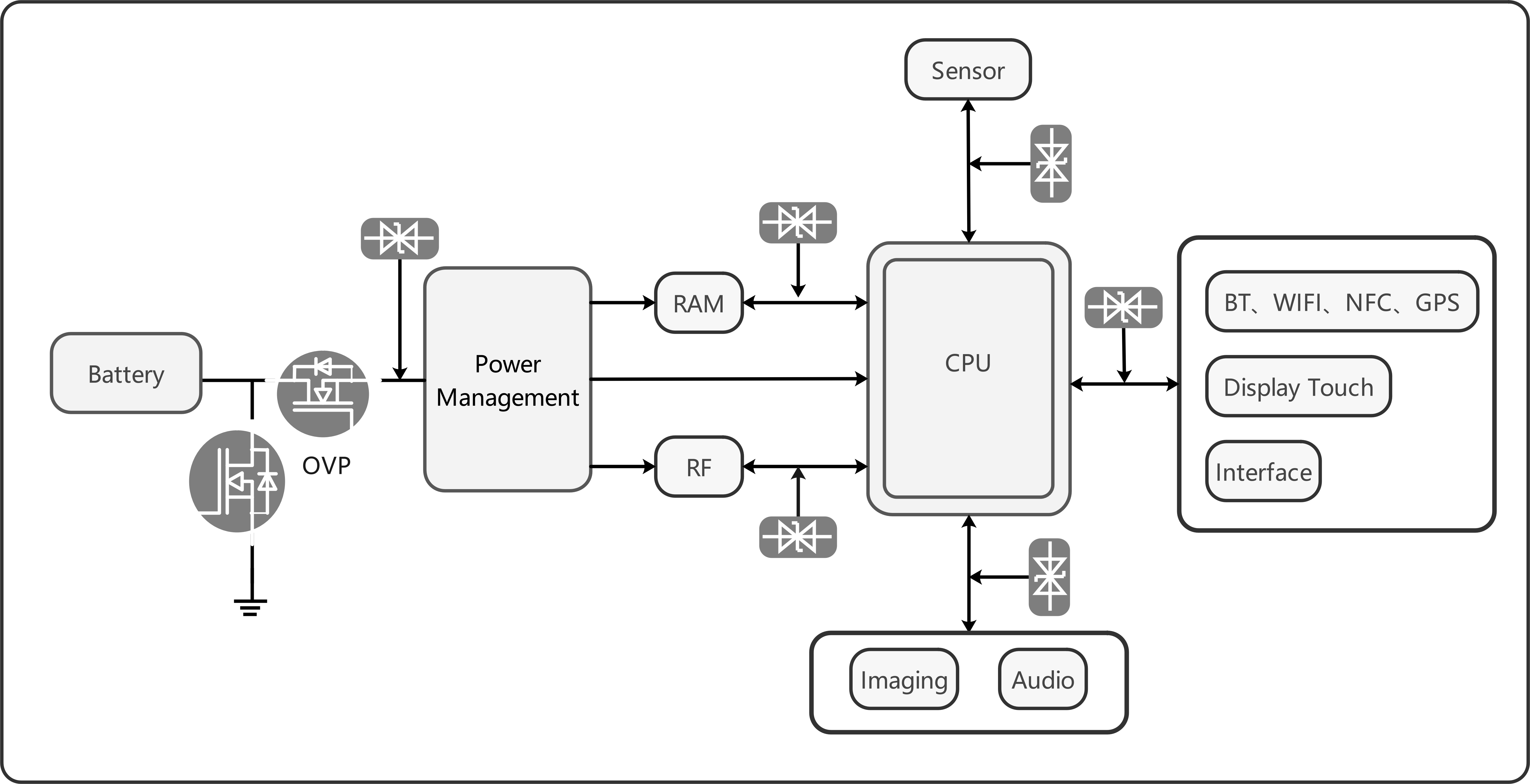

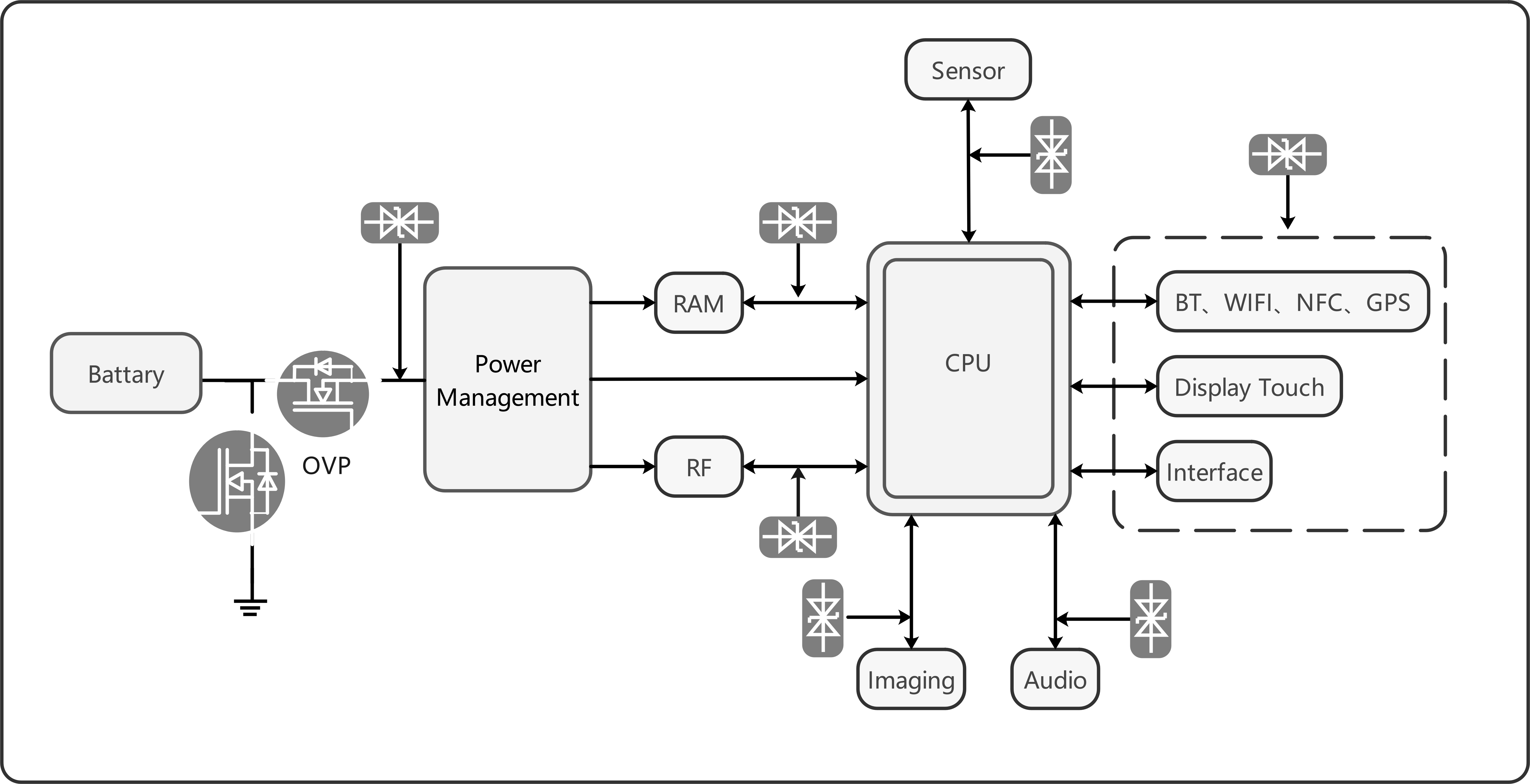

智能手机
Function | Part Number | Polarity | VDS(V) | RDS(on)(mΩ) | Package |
MOSFET | STM3033N03LA1 | N | 30 | 3.3 | DFN3030 |
SMPG02N301UK | N | 20 | 300 | DFN1006-3H | |
SMPG02P450UK | P | 20 | 450 | DFN1006-3H | |
SMMV03N014USK | N | 30 | 14 | DFN2020-6HMA | |
Function | Part Number | Polarity | VRM(V) | IF(A) | Package |
Schottky | B1040WS | - | 40 | 1 | SOD-323 |
SDB1040LHP | - | 40 | 1 | DFN1006-2H | |
SP202V30S | - | 30 | 2 | DFN1608-2HX | |
MBR0540 | - | 40 | 0.5 | SOD-123 | |
SDB14WS | - | 40 | 1 | SOD-323 | |
Function | Part Number | Polarity | VRM(V) | IF(A) | Package |
Switching | 1N4148W | - | 100 | 0.2 | SOD-123 |
BAV99 | - | 100 | 0.215 | SOT-23 | |
Function | Part Number | Polarity | VRWM(V) | Cj(PF) | Package |
ESD | E4V8HUPM1C | Uni | 4.85 | 821 | DFN1610-2H |
E24HUMY1F | Uni | 24 | 1000 | DFN2020-3HM | |
E5V0SBP1AA | Bi | 5 | 12 | DFN0603 | |
E5V0MUPC1CA | Uni | 5 | 135 | DFN1006-2H | |
E15MUPC1C | Uni | 15 | 100 | DFN1006-2H | |
Function | Part Number | Polarity | Vwm(V) | Pppm(W) | Package |
TVS | SMAJ Series | - | 5-440 | 400 | SMA |
SMBJ Series | - | 5-440 | 600 | SMB | |
SMCJ Series | - | 5-440 | 1500 | SMC | |
SMFJ Series | - | 5-440 | 200 | SOD-123FL |
