产品应用

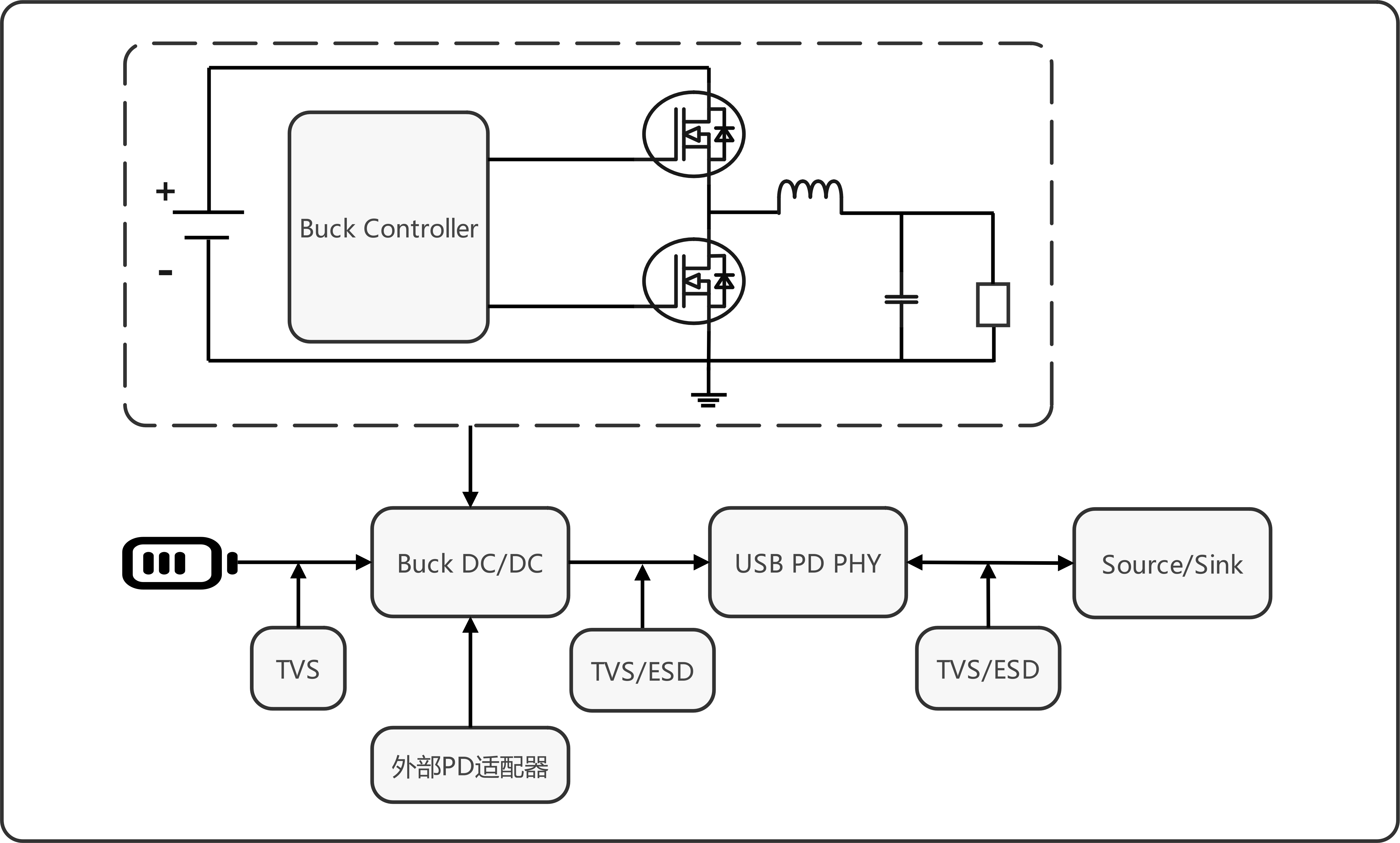

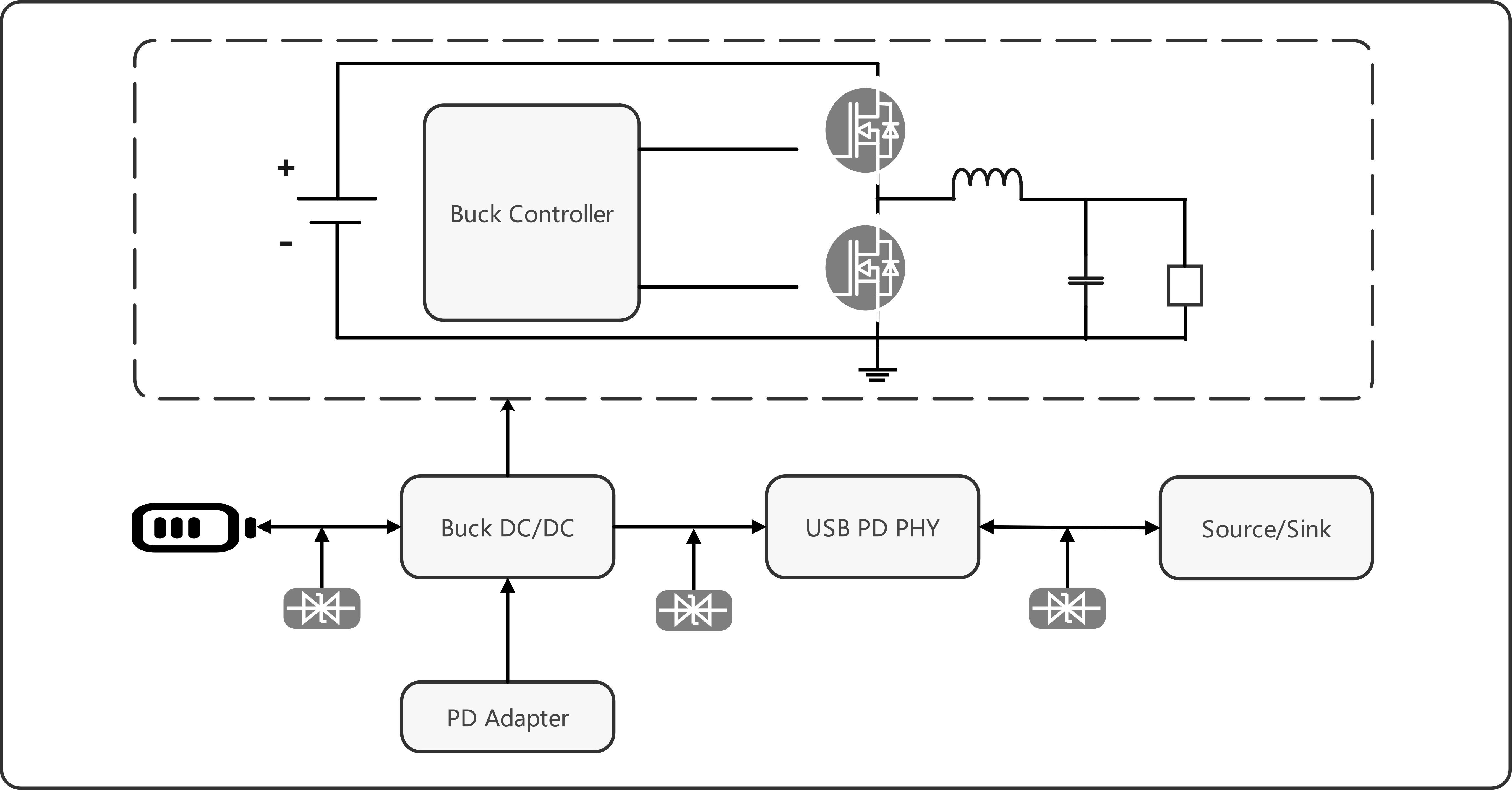

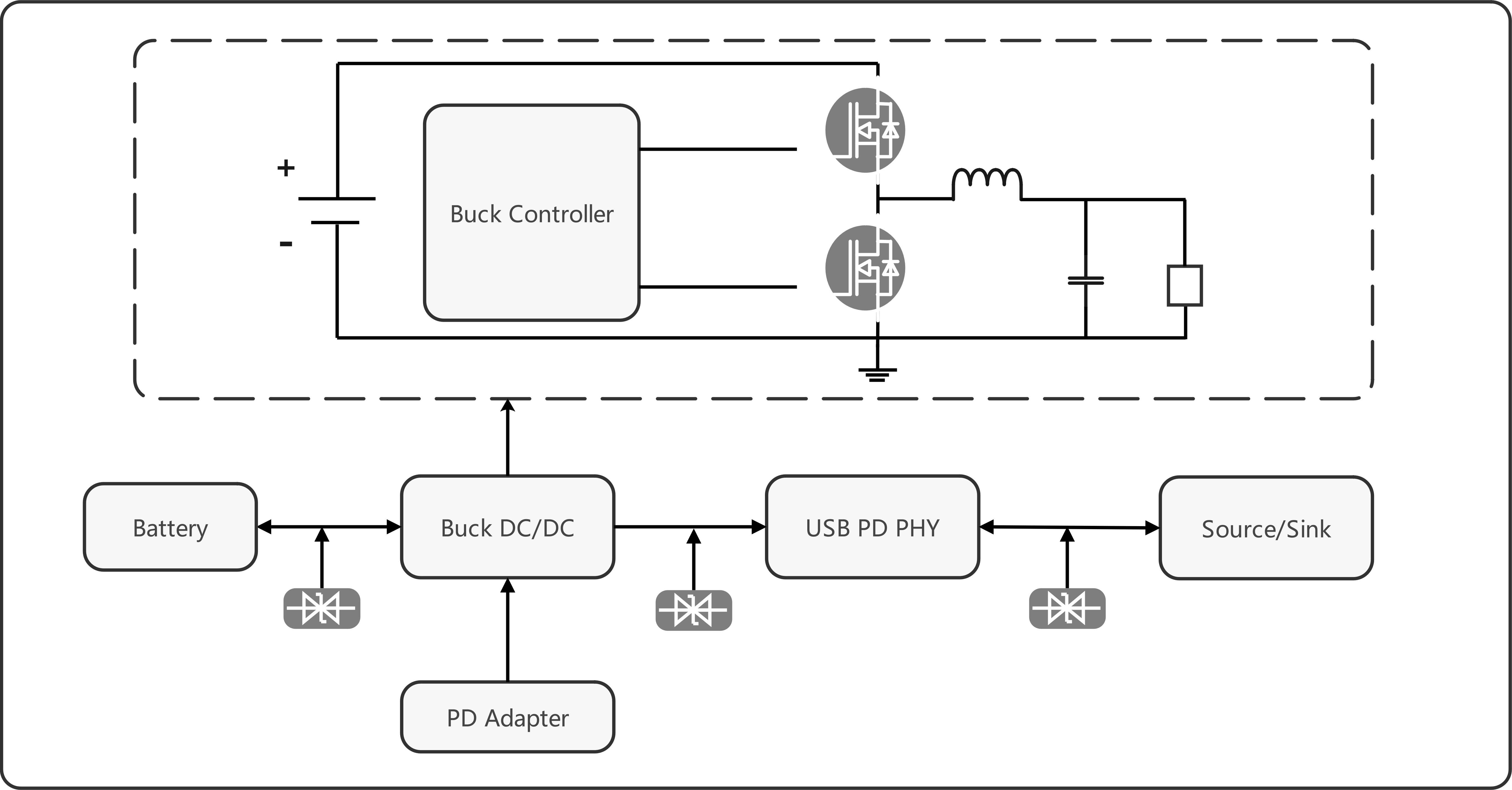

笔记本电脑
Function | Part Number | Polarity | VDS(V) | RDS(on)(mΩ) | Package |
MOSFET | SDM3047N03LA1 | N | 30 | 4.7 | DFN3030 |
SDM5017N03LA1 | N | 30 | 1.7 | DFN5060 | |
SDM5024N04LA1 | N | 40 | 2.4 | DFN5060 | |
SDM5045N04LA1 | N | 40 | 4.5 | DFN5060 | |
STM3033N03LA1 | N | 30 | 3.3 | DFN3030 | |
SDM5018N04LA1 | N | 40 | 1.8 | DFN5060 | |
SMPG02N301UK | N | 20 | 300 | DFN1006-3H | |
2N7002AK | N | 60 | 2200 | SOT-23 | |
Function | Part Number | Polarity | VRM(V) | IF(A) | Package |
Schottky | SS34C | - | 40 | 3 | SMC |
SS34B | - | 40 | 3 | SMB | |
SDB1040LHP | - | 40 | 1 | DFN1006-2H | |
SP202V30S | - | 30 | 2 | DFN1006-2HX | |
Function | Part Number | Polarity | VRM(V) | IF(A) | Package |
Switching | 1N4148W | - | 100 | 0.2 | SOD-123 |
Function | Part Number | Polarity | VRWM(V) | Cj(PF) | Package |
ESD | E3V3LBPB1A | Bi | 3.3 | 9 | DFN0603 |
E5V0SBPC1AA | Bi | 5 | 20 | DFN1006-2H | |
E5V0XBPC1A | Bi | 5 | 0.22 | DFN1608-2H | |
Function | Part Number | Polarity | Vwm(V) | Pppm(W) | Package |
TVS | SMAJ Series | - | 5-440 | 400 | SMA |
SMBJ Series | - | 5-440 | 600 | SMB | |
SMCJ Series | - | 5-440 | 1500 | SMC | |
SMFJ Series | - | 5-440 | 200 | SOD-123FL |
