产品应用

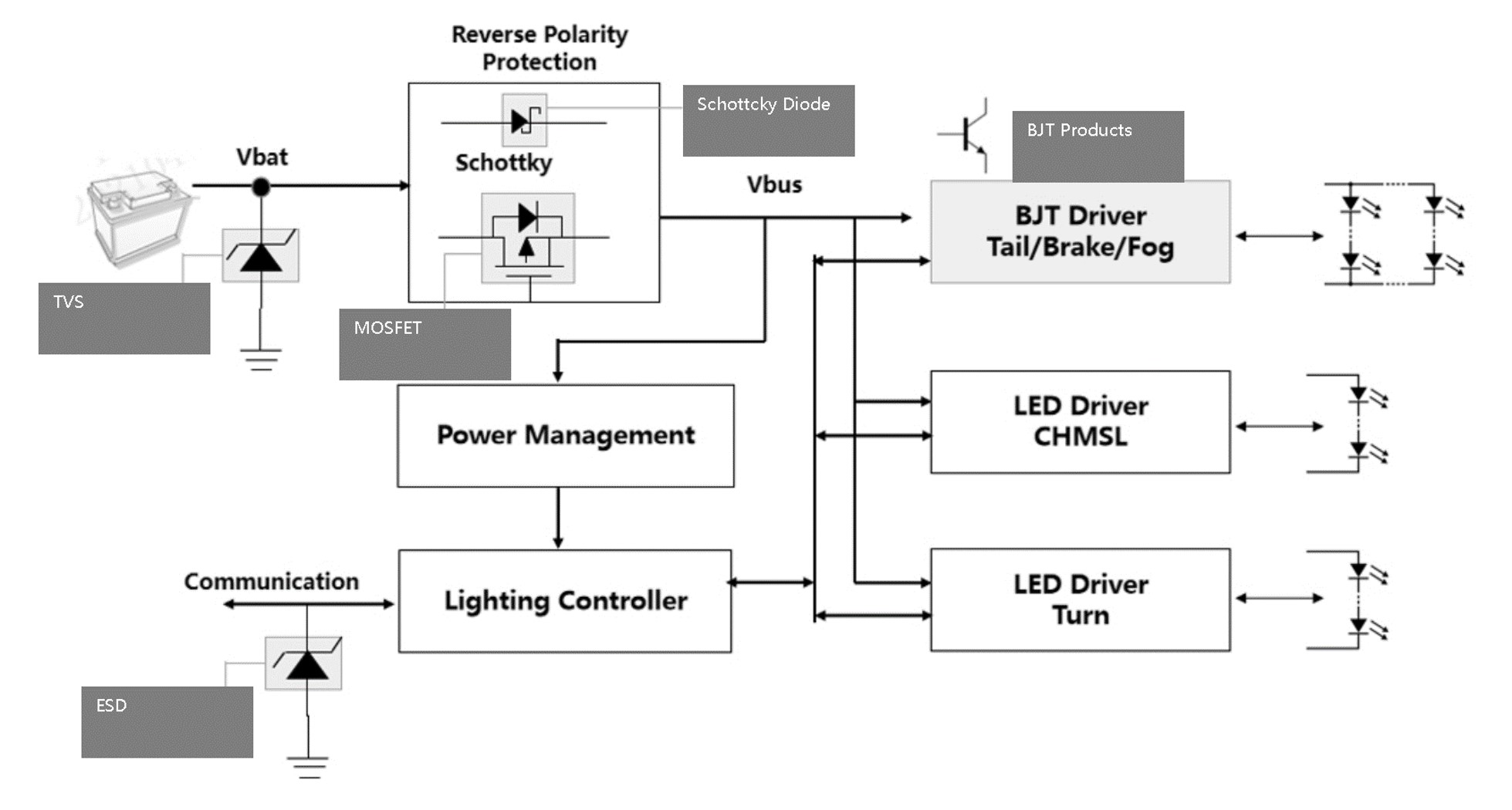

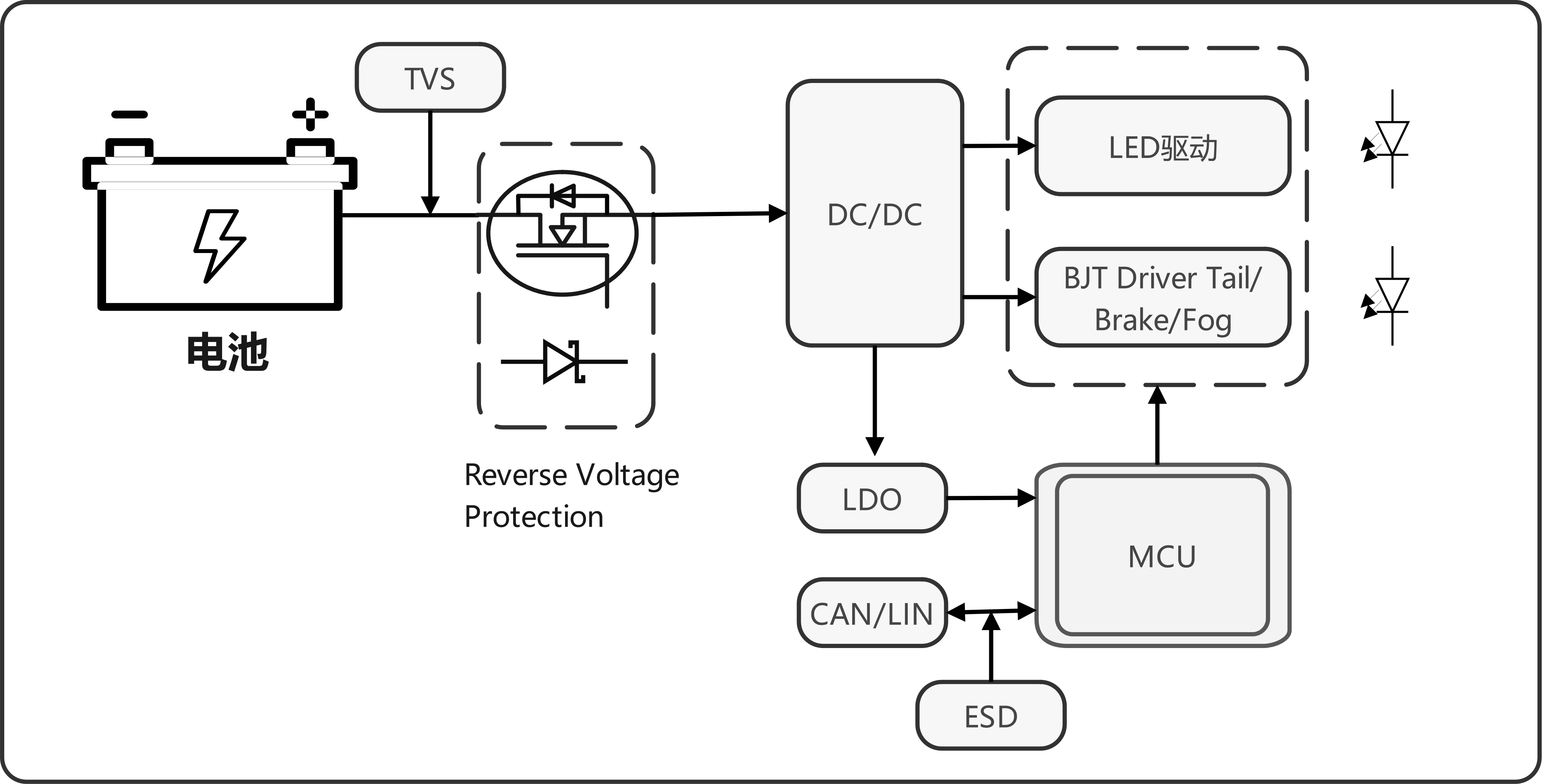

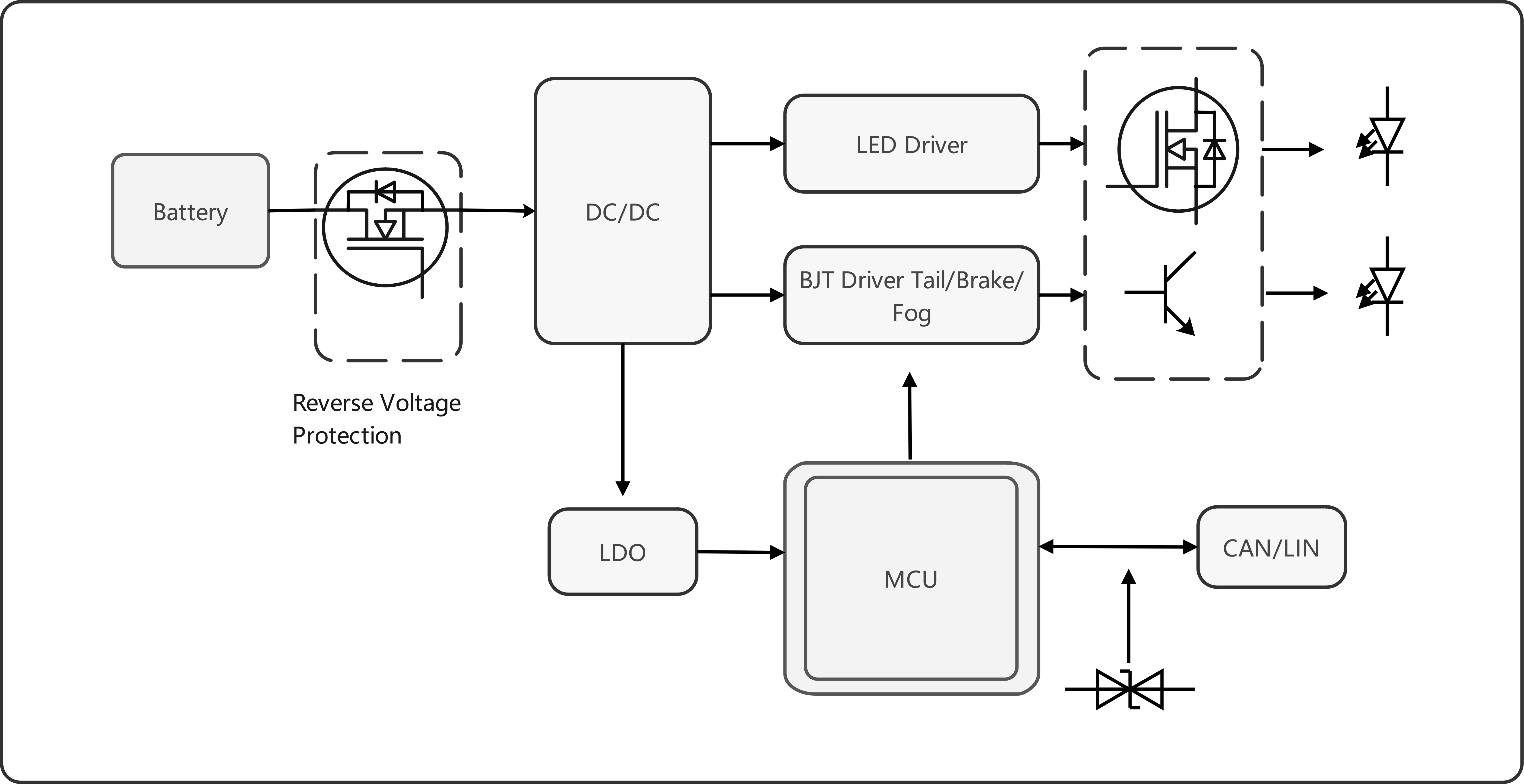

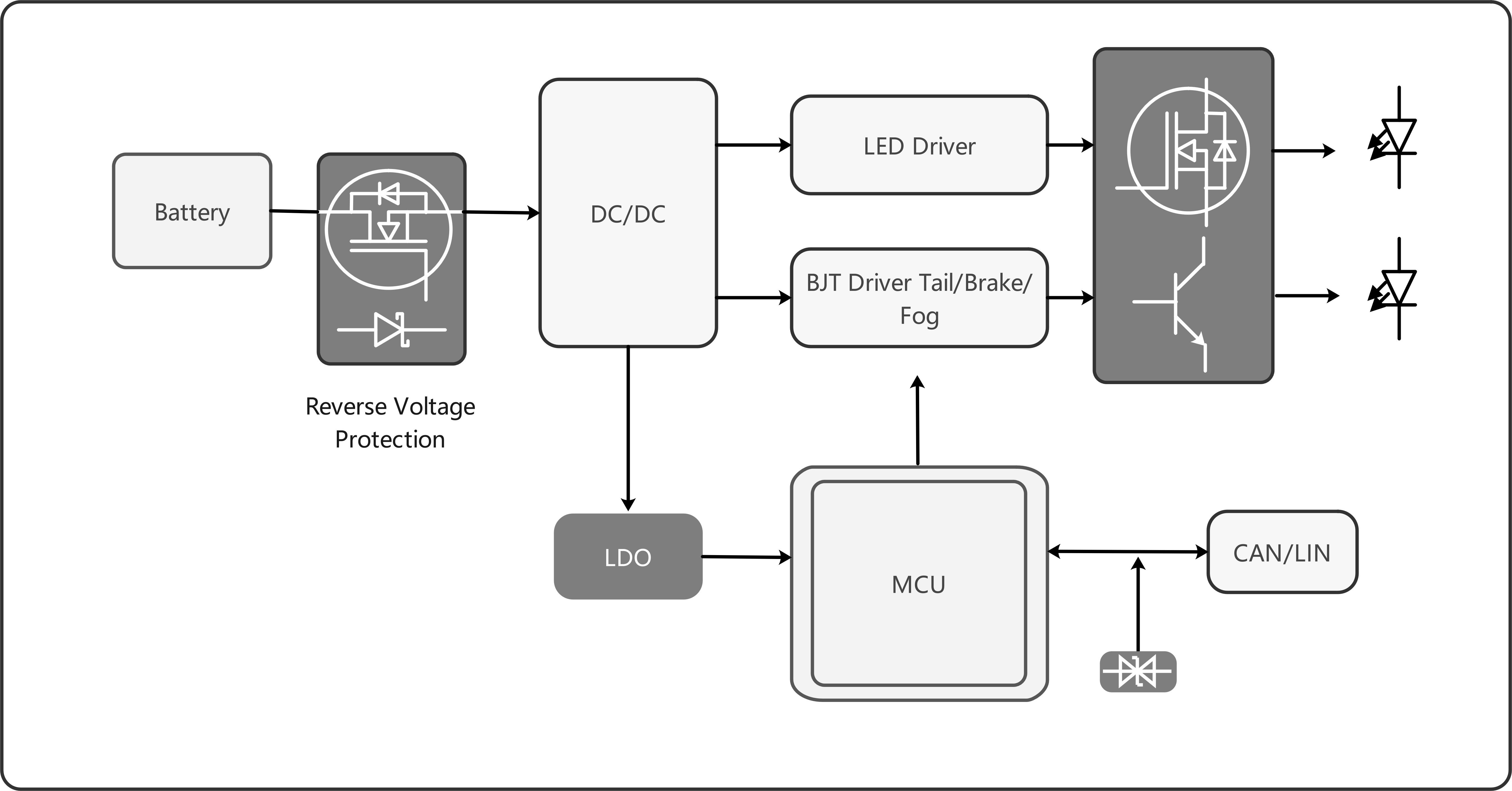

LED车灯
Part Number | Polarity | VDS(V) | RDS(on)@10V (mΩ) | Package | |
MOSFET | N | 60 | 3000 | SOT-23 | |
MKA06P100L-CH | P | 60 | 100 | SOT-23 | |
WTM306P450L-CH | P | 60 | 45 | DFN3030 | |
WTM606C770L-CH | N+P | 60 | N:30 P:77 | DFN5060 | |
Function | Part Number | Polarity | VCEO(V) | IC(A) | Package |
BJT | BCP56-16XQ-CH | NPN | 80 | 1 | SOT-223 |
BC818X-CH | NPN | 25 | 0.5 | SOT-23 | |
Function | Part Number | Polarity | VRM(V) | IF(A) | Package |
Switching | BAV23CA-CH | Uni | 250 | 0.4 | SOT-23 |
1N4148W-CH | Uni | 100 | 0.2 | SOD-123 | |
Function | Part Number | Polarity | VRRM(V) | IF(A) | Package |
Schottky | BAS40-04-CH | - | 40 | 0.2 | SOT-23 |
- | 40 | 0.5 | SOD-123 | ||
SDB14WS-CH | - | 40 | 1 | SOD-323 | |
Function | Part Number | Polarity | VRWM(V) | IPP(A) | Package |
ESD | E24SBKA2B-CH | Bi | 24 | 3 | SOT-23 |
Function | Part Number | Polarity | Vzonm(V) | IZT(mA) | Package |
Zener | MM1Z3V3-CH | Uni | 3.3 | 5 | SOD-123 |
