产品应用

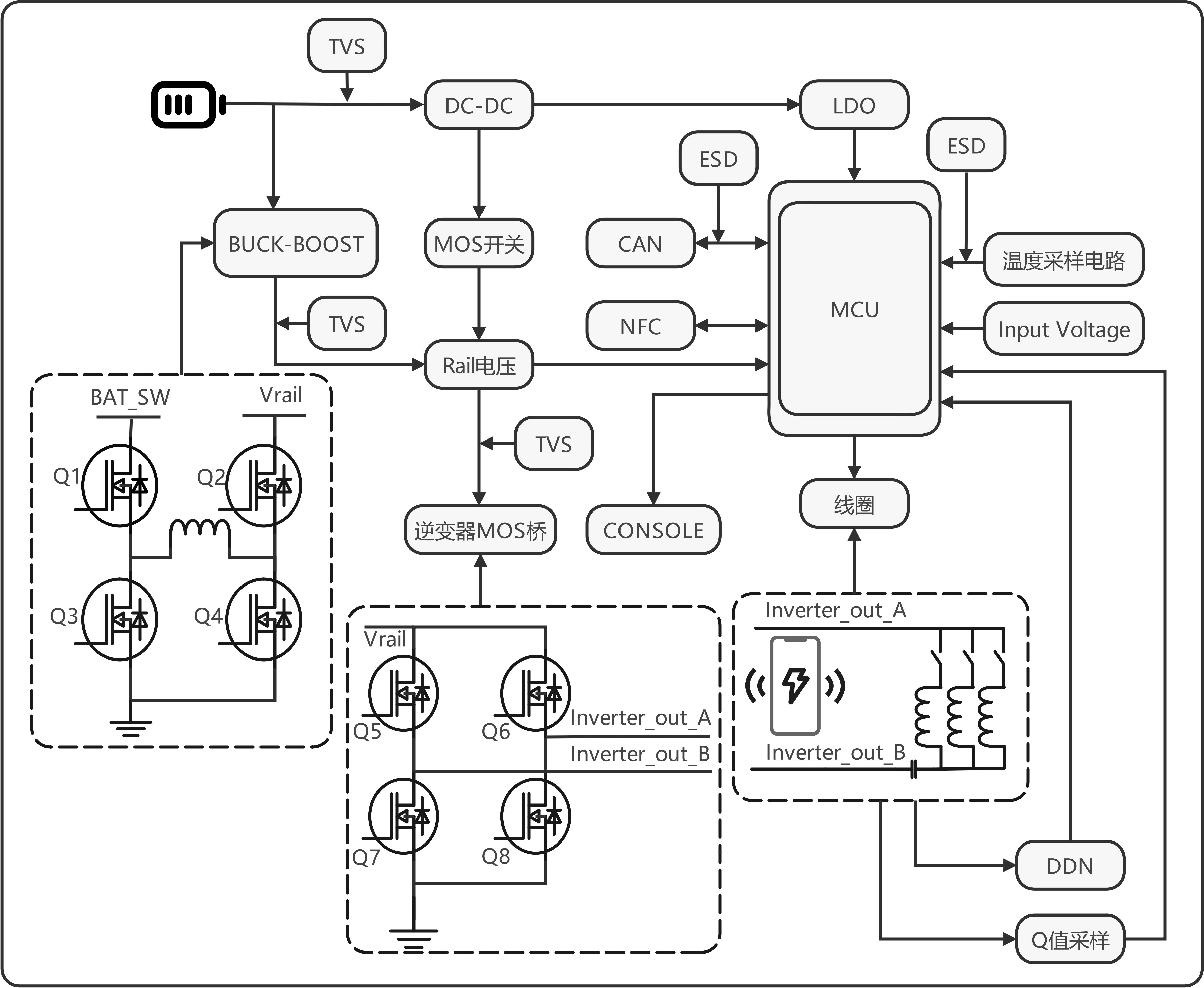

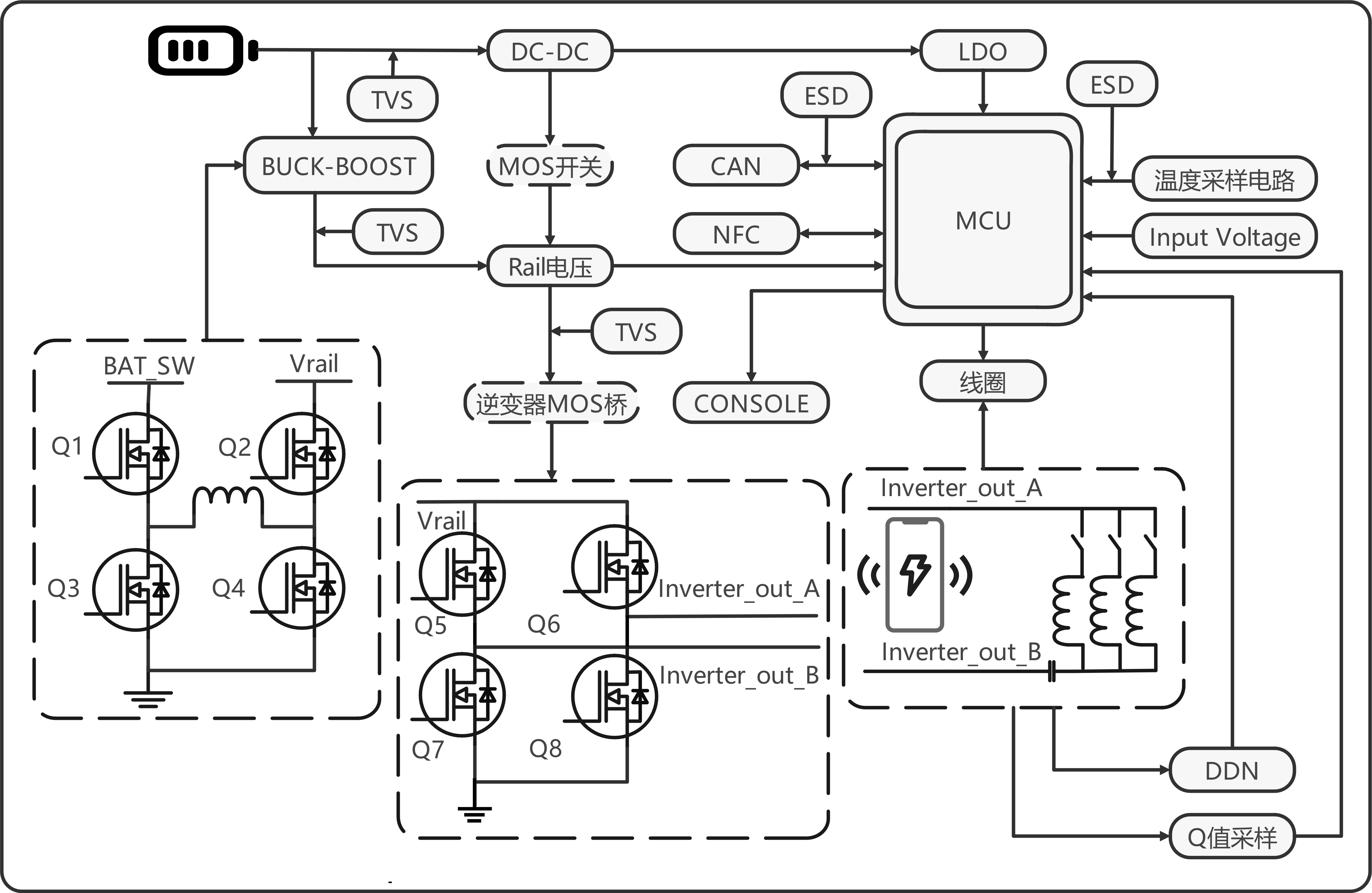

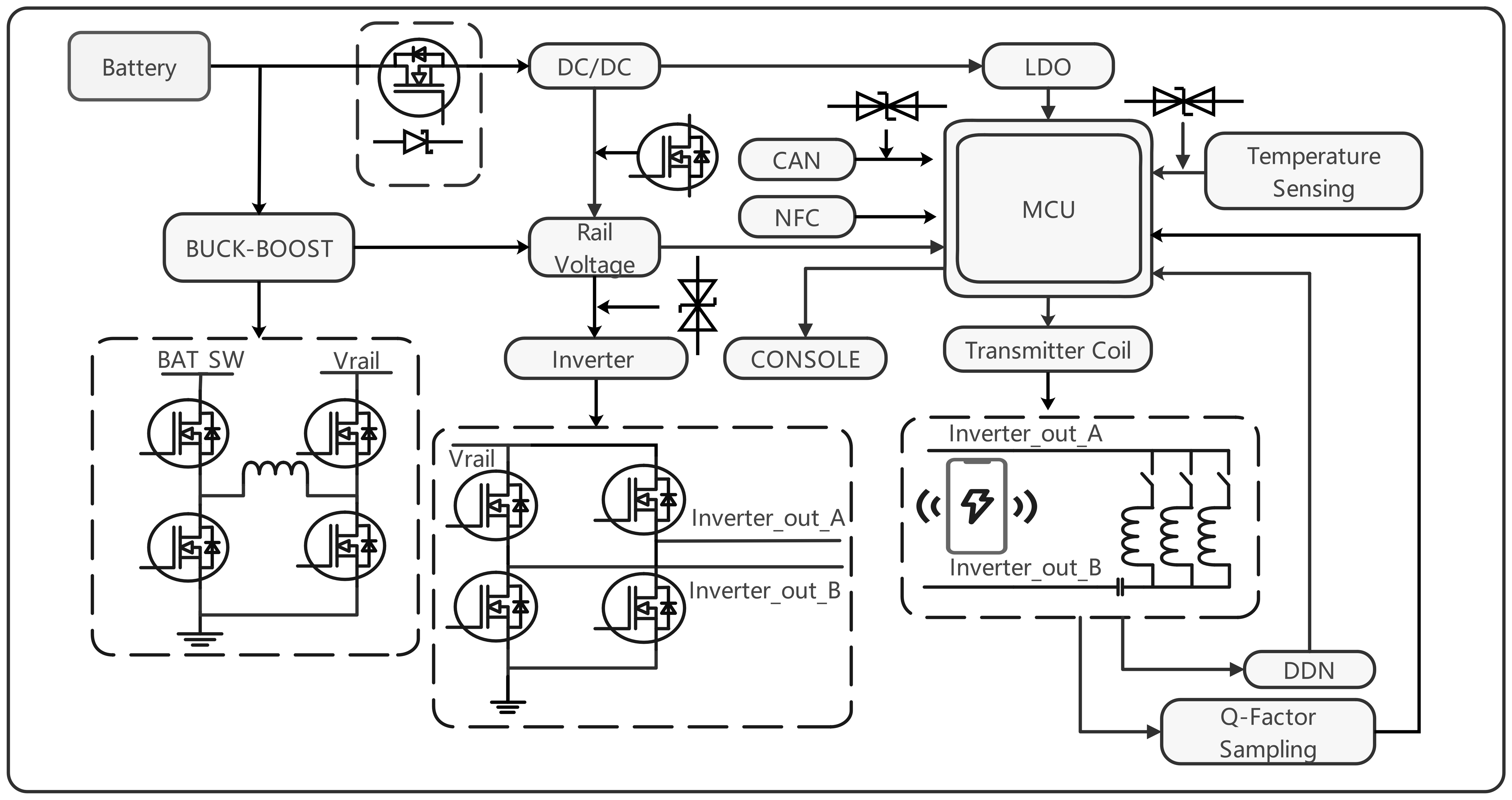

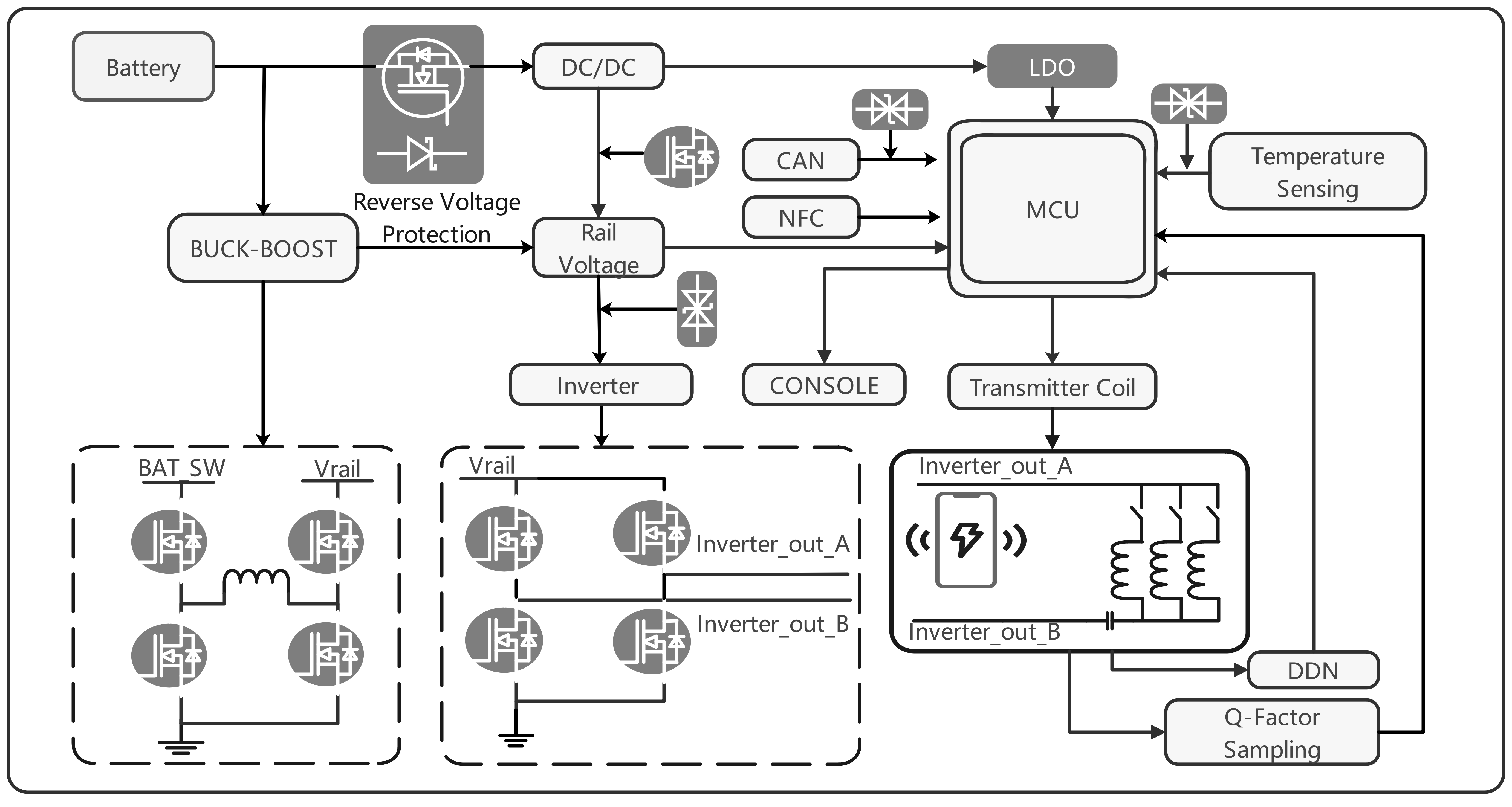

车载无线充电
Function | Part Number | Polarity | VDS(V) | RDS(on)(mΩ) | Package |
MOSFET | ASDM5280N10LA1 | N | 100 | 30 | DFN5060 |
ASDM6177D10LA1 | N+N | 100 | 19 | DFN5060 | |
ASDM5280NE7LA1 | N | 75 | 28 | DFN5060 | |
ASTM3550P06LA1 | P | 60 | 55 | DFN3030 | |
ASTM3250P04LA1 | P | 40 | 25 | DFN3030 | |
Function | Part Number | Polarity | VCEO(V) | IC(A) | Package |
BJT | AMMBTA92 | PNP | 300 | 0.5 | SOT-23 |
ABC817 | NPN | 45 | 0.5 | SOT-23 | |
Function | Part Number | Polarity | VRM(V) | IF(A) | Package |
Switching | ABAV21WS | Uni | 250 | 0.2 | SOD-123 |
ABAV99 | Uni | 100 | 0.215 | SOT-23 | |
Function | Part Number | Polarity | VRRM(V) | IF(A) | Package |
Schottky | ABAS40-04 | - | 40 | 0.2 | SOT-23 |
AMBR0540 | - | 40 | 0.5 | SOD-123 | |
Function | Part Number | Polarity | VRWM(V) | Cj(PF) | Package |
ESD | AE24SBKA2B | Bi | 24 | 10 | SOT-23 |
Function | Part Number | Polarity | Vzonm(V) | IZT(mA) | Package |
Zener | AMM1Z15 | Uni | 15 | 5 | SOD-123 |
AMM1Z24 | Uni | 24 | 5 | SOD-123 | |
Function | Part Number | Polarity | Vwm(V) | Pppm(W) | Package |
TVS | ASMBJ12CA | Bi | 12 | 600 | SMB |
ASMBJ24CA | Bi | 24 | 600 | SMB | |
A5.0SMDJ24CA | Bi | 24 | 5000 | SMC |
