产品应用

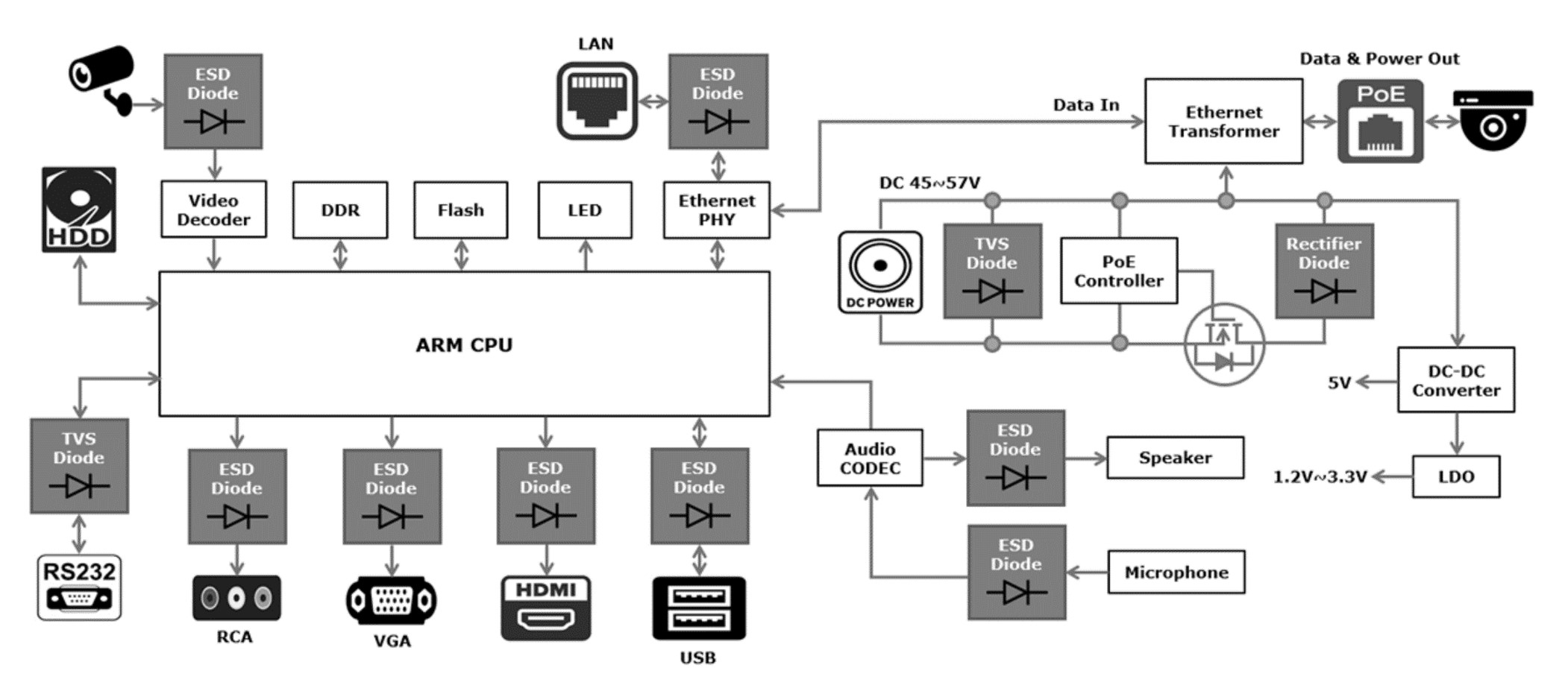

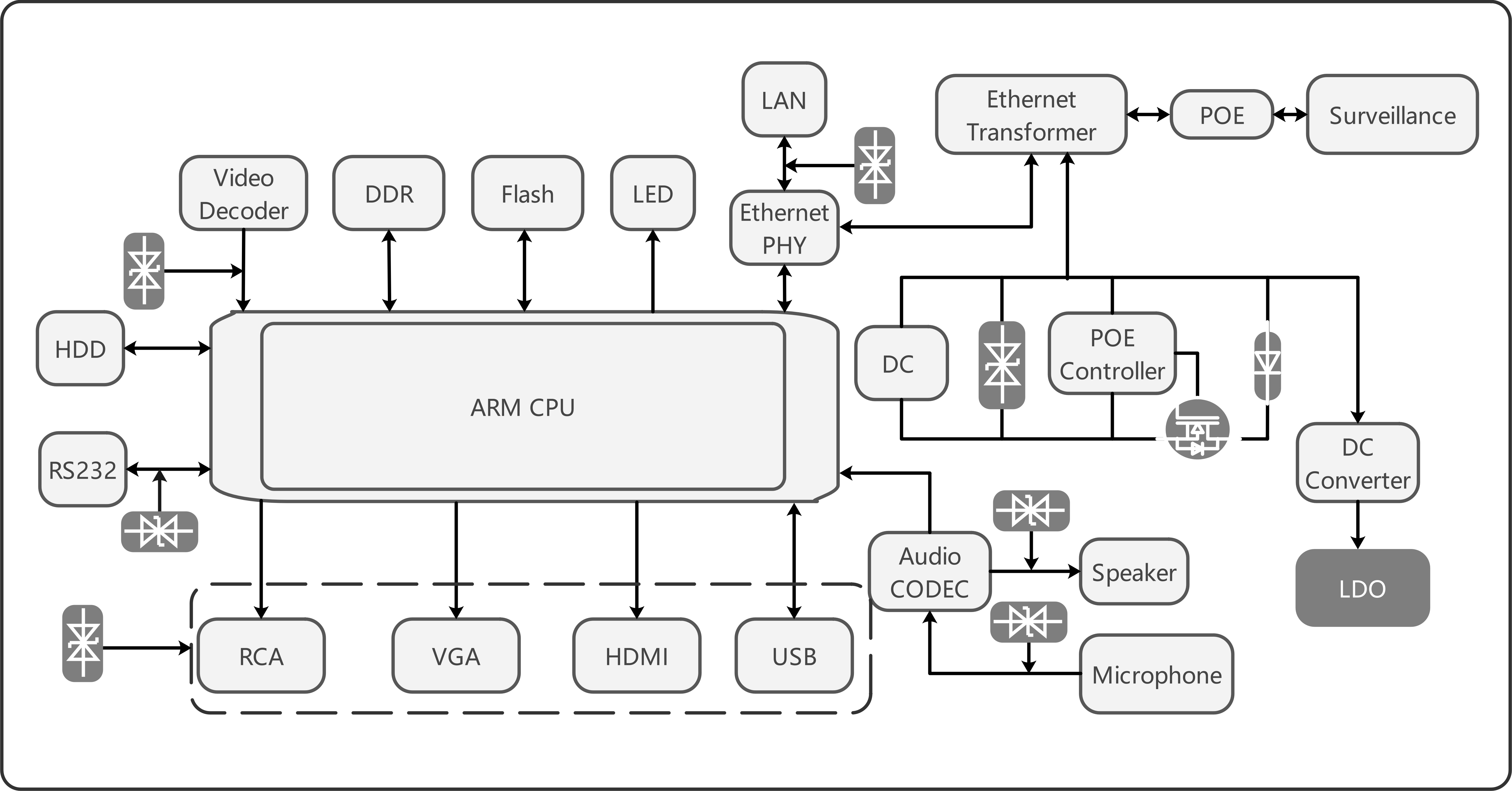

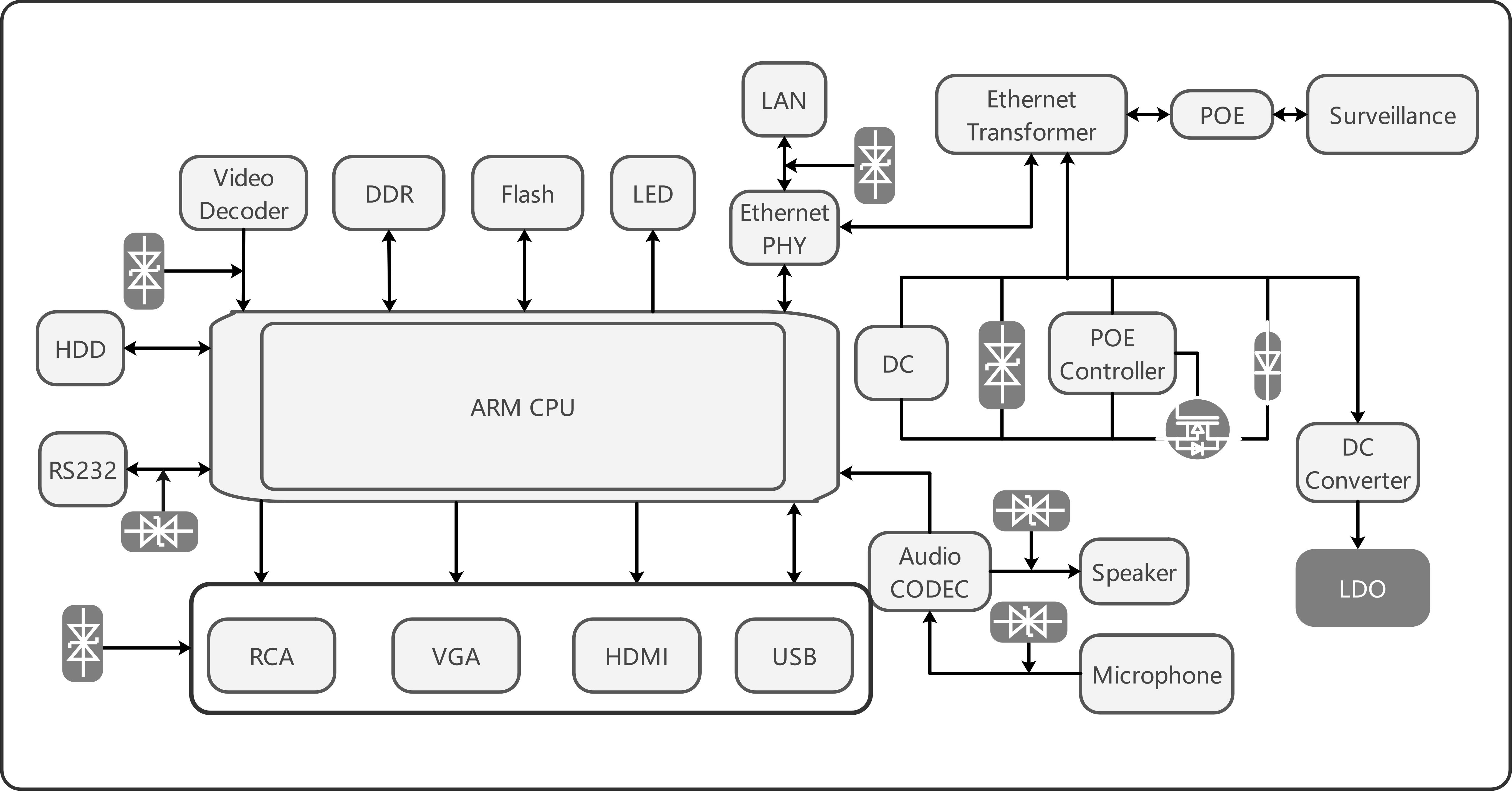

安防监控
Function | Part Number | Polarity | VDS(V) | RDS(on)(mΩ) | Package |
MOSFET | SDM3019N03LA1 | N | 30 | 1.9 | DFN3030 |
SDM3033N04HA1 | N | 40 | 3.3 | DFN3030 | |
SDPT020N10LA1 | N | 100 | 2 | TO-247-3 | |
SDAT035N10LA1 | N | 100 | 3.5 | TO-220F-3 | |
SDV033N10LA1 | N | 100 | 3.3 | TO-263 | |
SDM5064N12LA1 | N | 120 | 6.4 | DFN5060 | |
SDM5055N10LA1 | N | 100 | 5.5 | DFN5060 | |
SDM5042N10HA1 | N | 100 | 4.2 | DFN5060 | |
SDM5029N06HA1 | N | 60 | 2.9 | DFN5060 | |
SLCT10N65A2 | N | 650 | 900 | TO-220FB-3 | |
Function | Part Number | Polarity | VRM(V) | IF(A) | Package |
Schottky | SS320B | - | 200 | 3 | SMB |
SS520B | - | 200 | 5 | SMB | |
Function | Part Number | Polarity | VRRM(V) | IF(A) | Package |
FRD | US1M | - | 1000 | 1 | SMA |
Function | Part Number | Polarity | VRM(V) | IF(A) | Package |
Switching | 1N4148SW | - | 100 | 0.2 | SOD-123 |
Function | Part Number | Polarity | VRWM(V) | Cj(PF) | Package |
ESD | E5V0UBPC1A | Bi | 5 | 0.5 | DFN1006-2H |
E5V0VUPC1C | Uni | 5 | 0.8 | DFN1006-2H | |
E3V3UBPC1AL | Bi | 3.3 | 0.3 | DFN1006-2H | |
Function | Part Number | Polarity | Vwm(V) | Pppm(W) | Package |
TVS | SMBJ24CA | Bi | 24 | 600 | SMB |
SMBJ48CA | Bi | 48 | 600 | SMB |
