产品应用

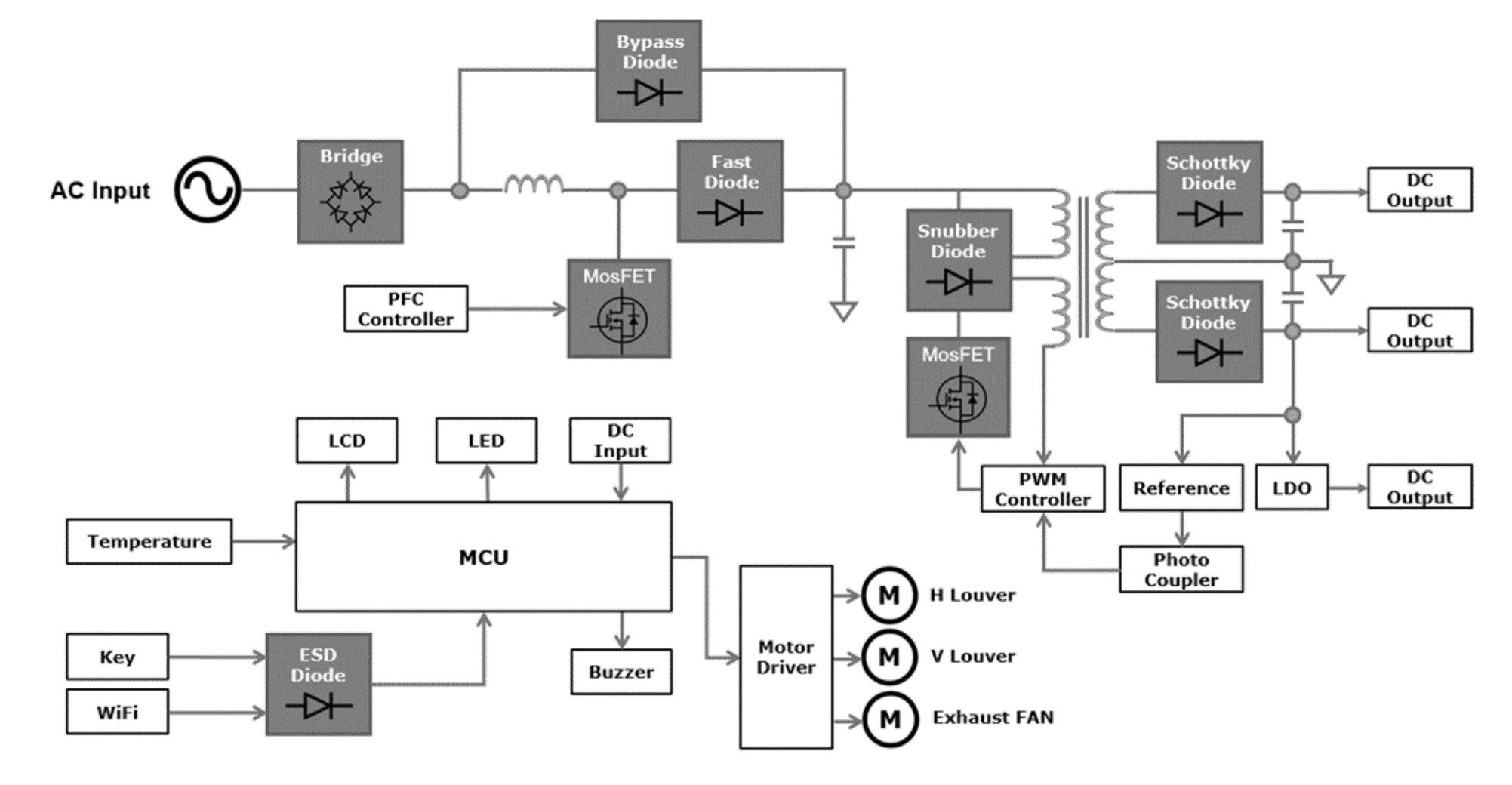

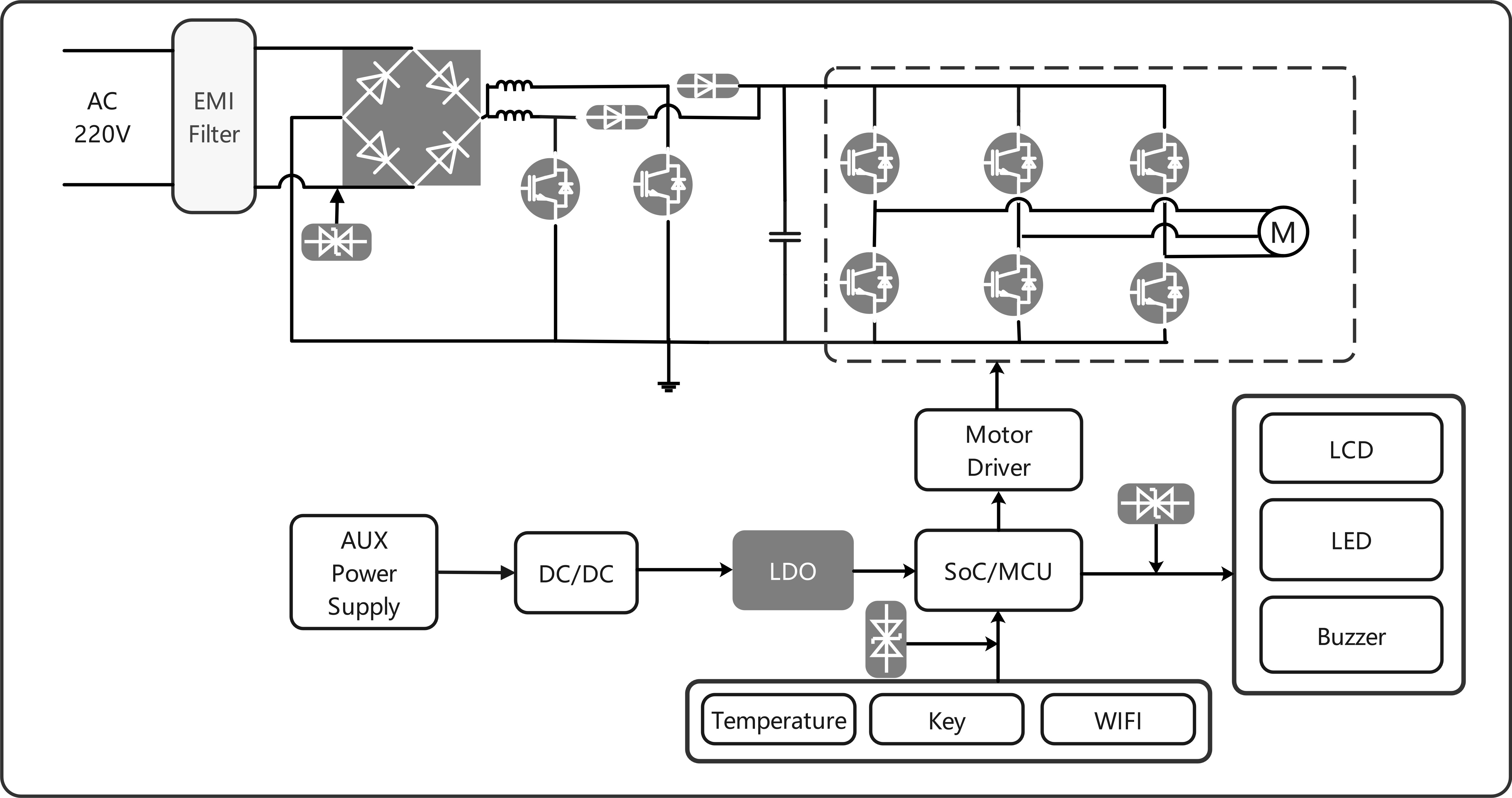

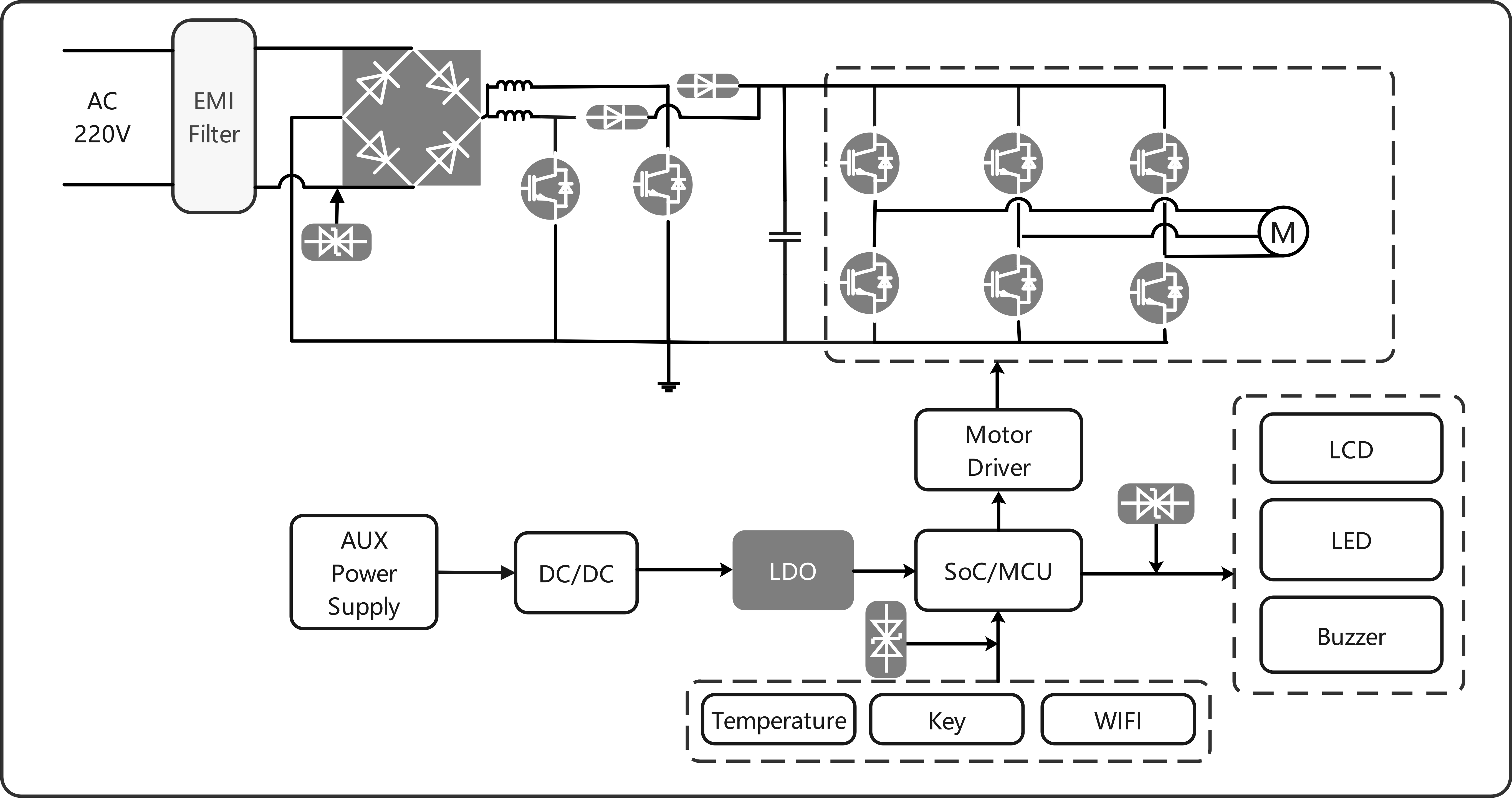

空调
Function | Part Number | Polarity | VDS(V) | RDS(on)(mΩ) | Package |
MOSFET | SMD03P052L | P | 30 | 52 | SOT-26 |
SMKA03P046L | P | 30 | 46 | SOT-23 | |
Function | Part Number | Polarity | VCES(V) | IC(A) | Package |
IGBT | SGPT40T65SA2D | - | 650 | 40 | TO-247-3 |
SGPT30T65SA2H | - | 650 | 30 | TO-247-3 | |
Function | Part Number | Polarity | VRRM(V) | IF(A) | Package |
SiC SBD | SBBT06J65AAG | - | 650 | 6 | TO-220F-2 |
Function | Part Number | Polarity | VRRM(V) | IF(A) | Package |
Bridge | GBJ1510 | - | 1000 | 15 | GBJ |
GBJ2510 | - | 1000 | 25 | GBJ | |
GBJ3510 | - | 1000 | 35 | GBJ | |
Function | Part Number | Polarity | VRRM(V) | IF(A) | Package |
FRD | FBT10H60S | - | 600 | 10 | TO-220F-2 |
FBT30H60S | - | 600 | 30 | TO-220F-2 | |
WFQT35H60S | - | 600 | 35 | TO-247-2 | |
WFPT40U60S | - | 600 | 40 | TO-247-3 | |
Function | Part Number | Polarity | VRWM(V) | Cj(PF) | Package |
ESD | E5V0SBWT1A | Bi | 5 | 30 | SOD-523 |
E3V3LUD4Q | Uni | 3.3 | 3 | SOT-26 | |
E3V3VUPU4DR | Uni | 3.3 | 0.65 | DFN2510-10 | |
Function | Part Number | Polarity | Vwm(V) | Pppm(W) | Package |
TVS | SMAJ Series | - | 5-440 | 400 | SMA |
SMBJ Series | - | 5-440 | 600 | SMB | |
SMCJ Series | - | 5-440 | 1500 | SMC | |
SMFJ Series | - | 5-440 | 200 | SOD-123FL |
